Leeson 3G-OTH-123114 — Spesifikasi Teknis

Name: Leeson 3G-OTH-123114 LEESON Parallel Shaft Gearmotors: Parallel, 90V DC, TENV, 109 RPM, 27 in-lb Max Torque, 16:1, 0.54 A (MPN M1115029.00). Key specifications — Motor Type: Permanent Magnet DC; Brand: LEESON; Full Load Current: 0.54 A.
Brand: Leeson

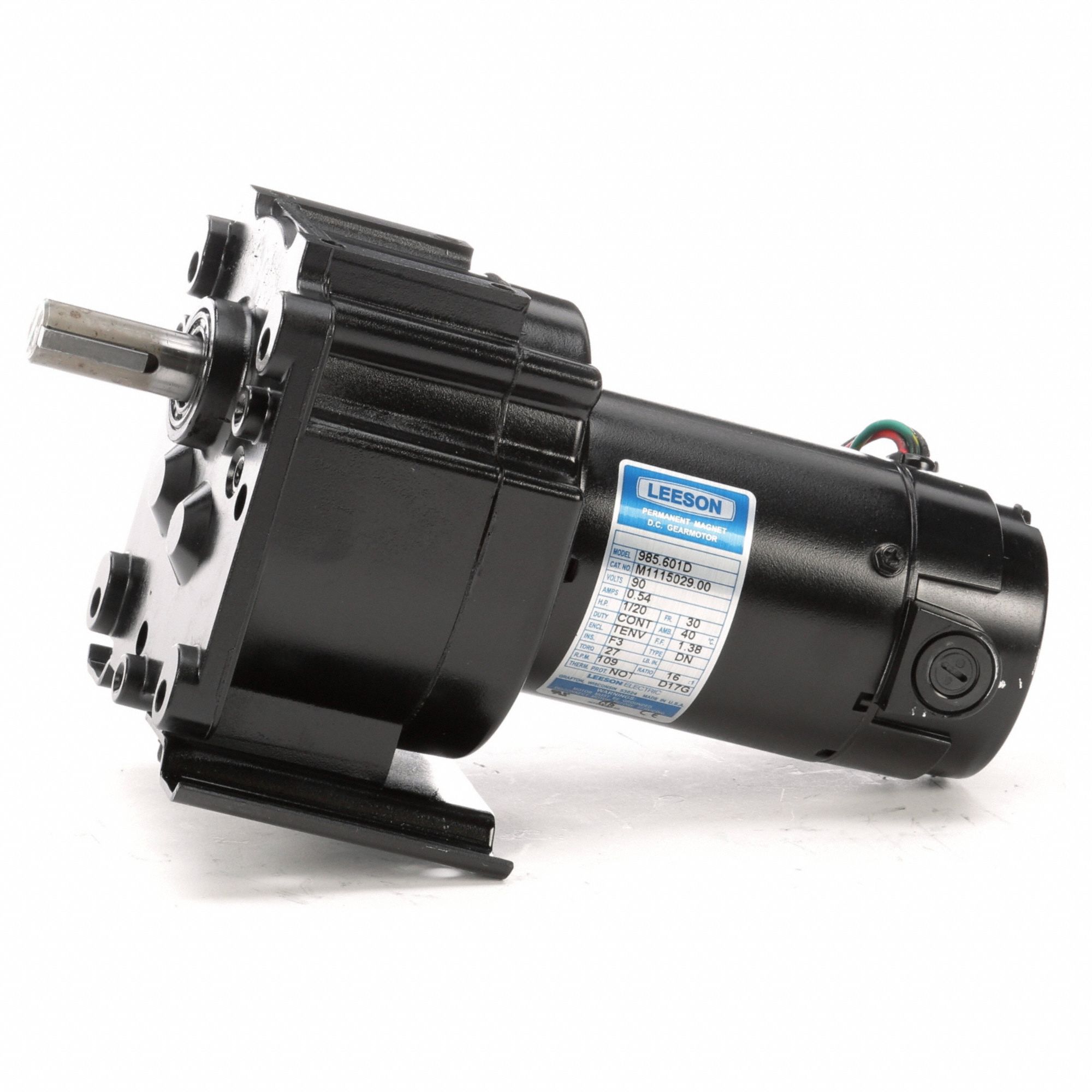

The LEESON Parallel Shaft DC Gearmotor (SKU 794AT8, MPN M1115029.00) is a permanent magnet DC motor with a parallel shaft configuration. It operates at 90V DC, delivers 109 RPM, and provides a maximum torque of 27 in-lb with a 16:1 gear ratio. The motor has a full load current of 0.54 A and features a TENV (Totally Enclosed Non-Ventilated) enclosure.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
DC	90V
Type	TENV, 109 RPM, 27 in-lb Max Torque, 0.54 A
Brand	LEESON
Motor Type	Permanent Magnet DC
Full Load Current	0.54 A
Manufacturer Part Number	M1115029.00
