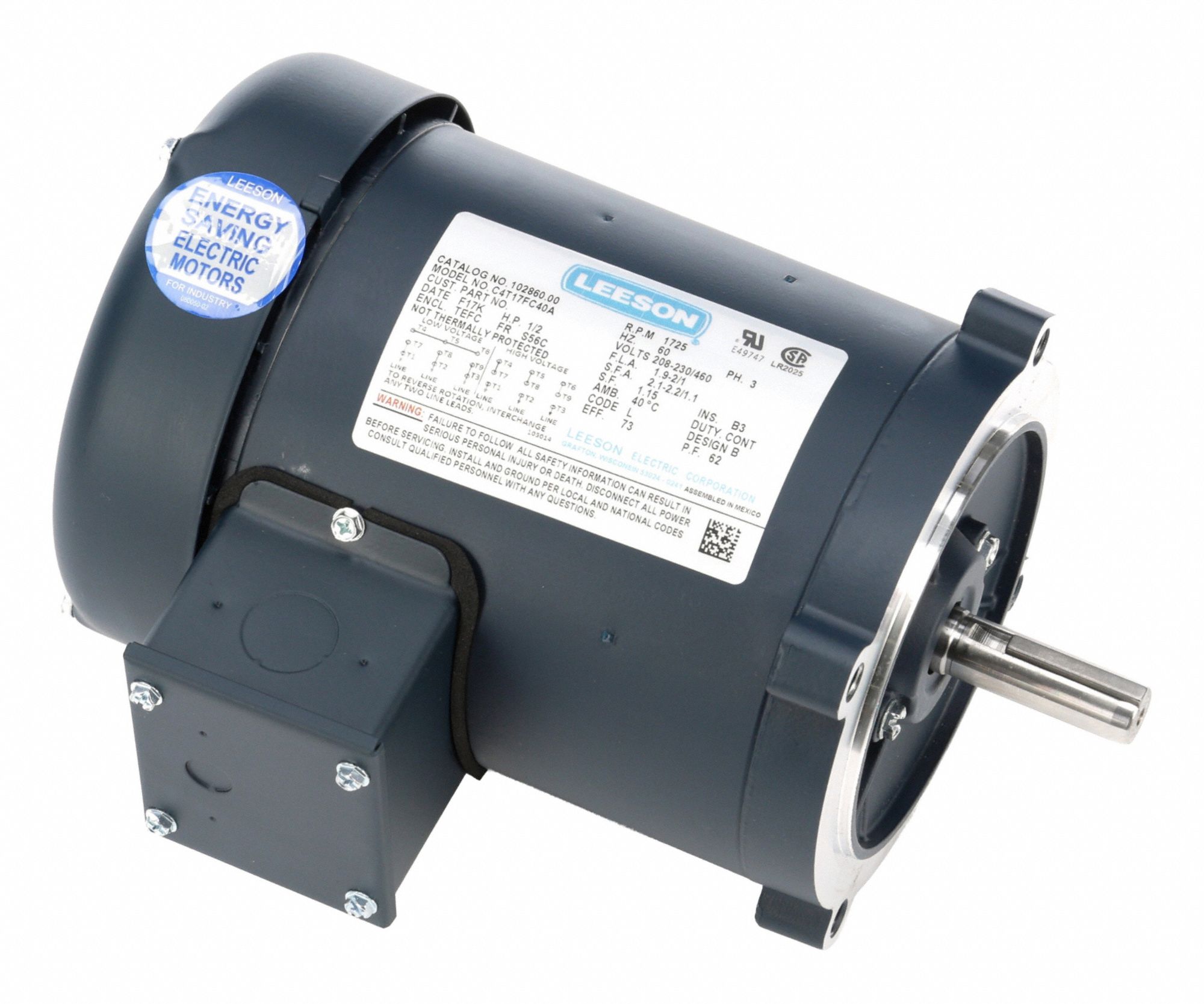

Leeson 3G-OTH-59053 — Spesifikasi Teknis

Name: Leeson 3G-OTH-59053 LEESON General Purpose Motors: C-Face Mount, Totally Enclosed Air-Over, 1/2 hp, 208-230/460V AC (MPN 102860.00). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 1.9-2.0/1.0 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: TEAO.
Brand: Leeson

The LEESON General Purpose Motors: C-Face Mount (SKU 798KJ3) is a C-Face 3-Phase General Purpose AC Motor with a Totally Enclosed Air-Over (TEAO) enclosure. It operates at 1,725 RPM at 60 Hz and is rated for 208-230/460V AC with a full load current of 1.9-2.0/1.0 A. This motor is designed for industrial applications requiring a compact, durable motor with a C-face mounting configuration.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	208-230/460V
Type	Totally Enclosed Air-Over, 1/2 hp
Brand	LEESON
Motor Enclosure	TEAO
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	102860.00
Full Load Current @ 60 Hz	1.9-2.0/1.0 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
