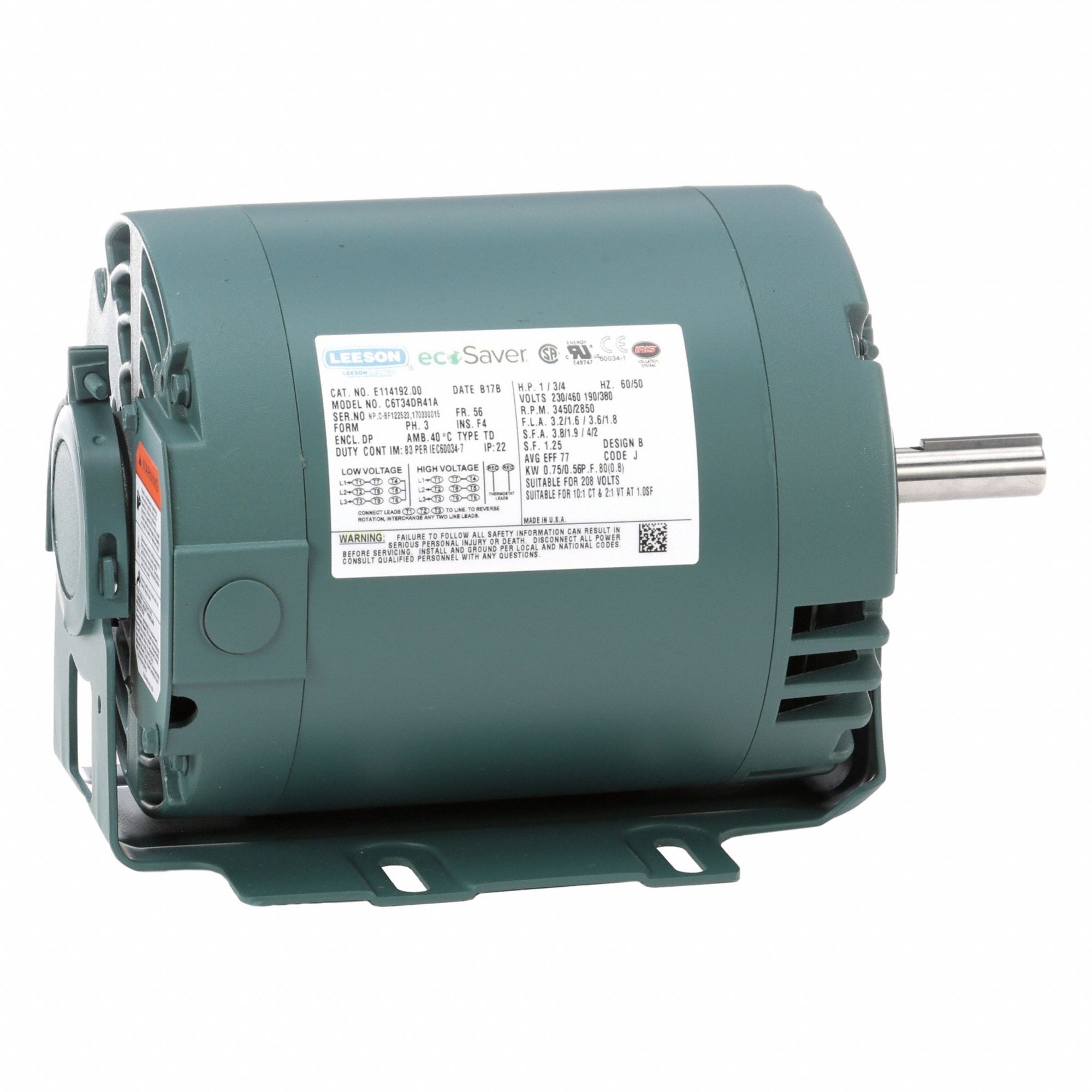

Leeson 3G-OTH-77253 — Spesifikasi Teknis

Name: Leeson 3G-OTH-77253 LEESON General Purpose Motor: Rigid Base Mount, Open Drip Proof, 1 hp, 230/460V AC, 3,450 RPM (MPN E114192.00). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 1.6 A; Nameplate RPM @ 60 Hz: 3,450 RPM; Motor Enclosure: ODP.
Brand: Leeson

The LEESON General Purpose Motor: Rigid Base Mount (SKU 820HF3, MPN E114192.00) is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It is rated at 1 hp, 3,450 RPM at 60 Hz, with a full load current of 1.6 A at 230/460V AC.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	230/460V
Type	Open Drip Proof, 1 hp, 3,450 RPM
Brand	LEESON
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	3,450 RPM
Manufacturer Part Number	E114192.00
Full Load Current @ 60 Hz	1.6 A
Nameplate Voltage @ 60 Hz	230/460V AC
