Leeson 3G-OTH-60405 — Spesifikasi Teknis

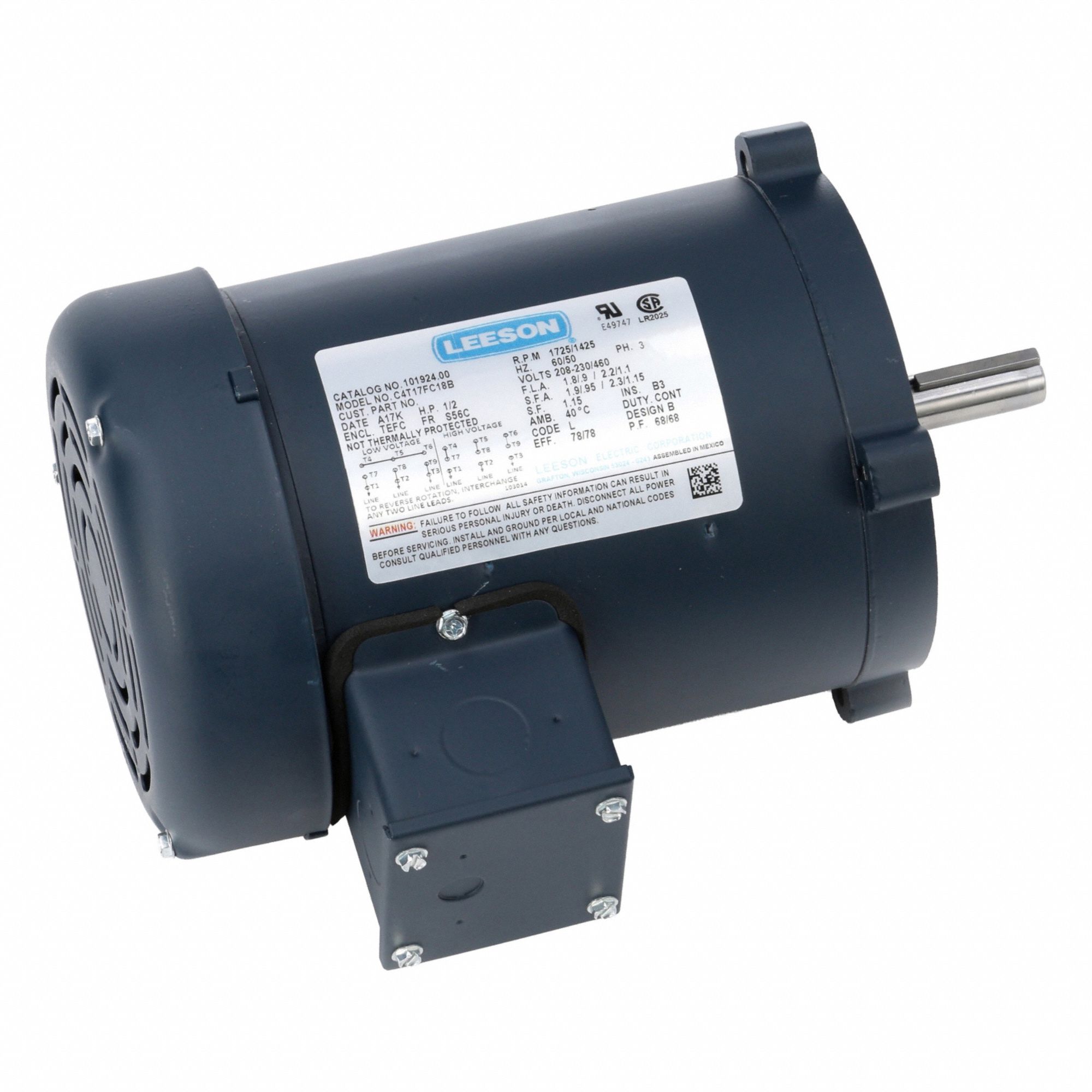

Name: Leeson 3G-OTH-60405 LEESON General Purpose Motor: C-Face Mount, Totally Enclosed Fan Cooled, 1/2 hp, 230/460V AC, T-Stat (MPN 101924.00). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 0.90 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: TEFC.
Brand: Leeson

The LEESON General Purpose Motor (SKU 820HN1) is a C-Face 3-Phase General Purpose AC Motor with a TEFC enclosure. It operates at 1,725 RPM at 60 Hz with a full load current of 0.90 A at 230/460V AC. This 1/2 hp motor includes a T-Stat and is identified by manufacturer part number 101924.00.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	230/460V
Type	Totally Enclosed Fan Cooled, 1/2 hp, T-Stat
Brand	LEESON
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	101924.00
Full Load Current @ 60 Hz	0.90 A
Nameplate Voltage @ 60 Hz	230/460V AC
