Leeson 3G-OTH-60416 — Spesifikasi Teknis

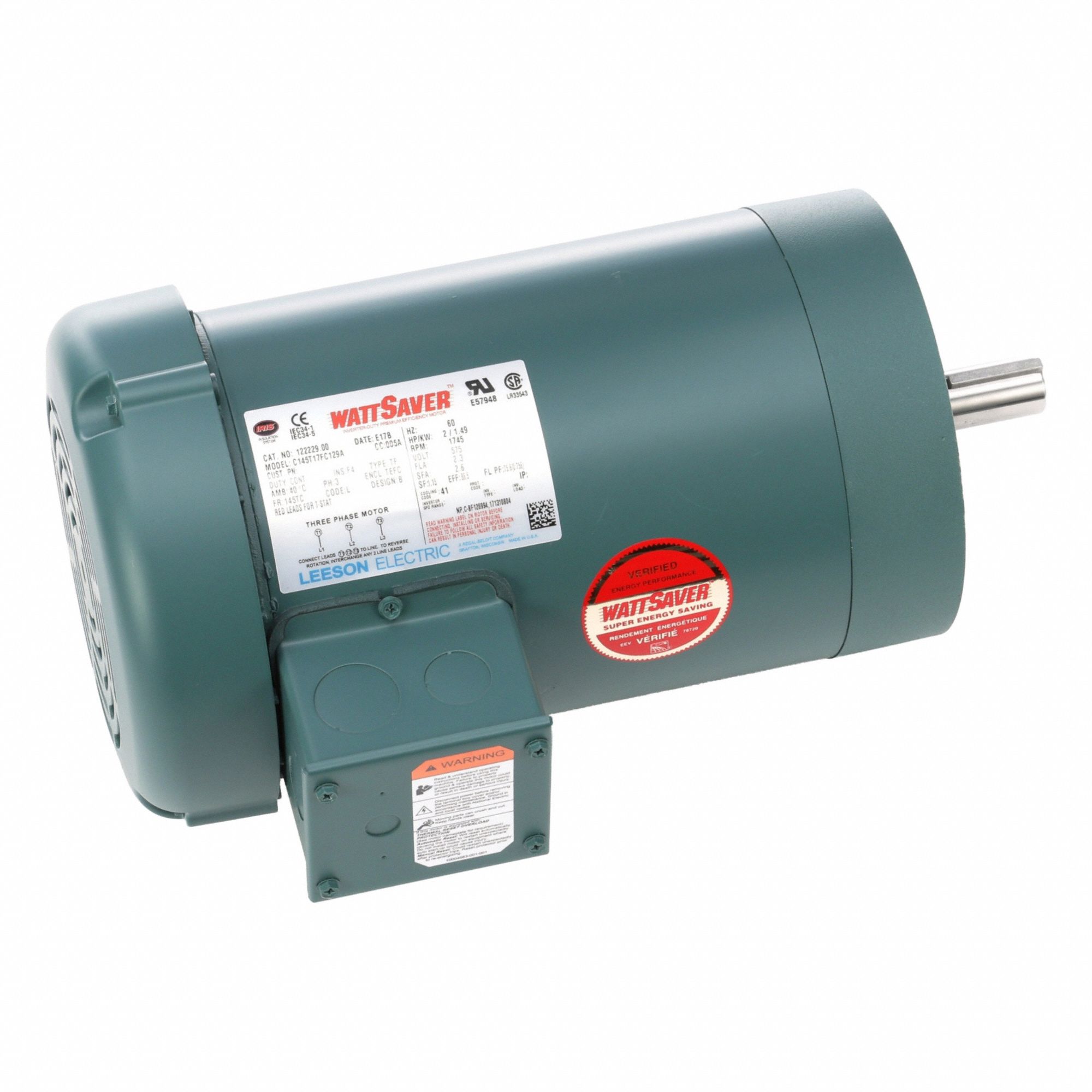

The LEESON General Purpose Motor (SKU 820HU6) is a C-Face 3-Phase AC motor with a TEFC enclosure. It delivers 2 hp at 1,745 RPM (60 Hz) and operates on 575V AC with a full load current of 2.3 A (MPN 122229.00).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 2 hp, 1,745 RPM |
| Brand | LEESON |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,745 RPM |
| Manufacturer Part Number | 122229.00 |
| Full Load Current @ 60 Hz | 2.3 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
