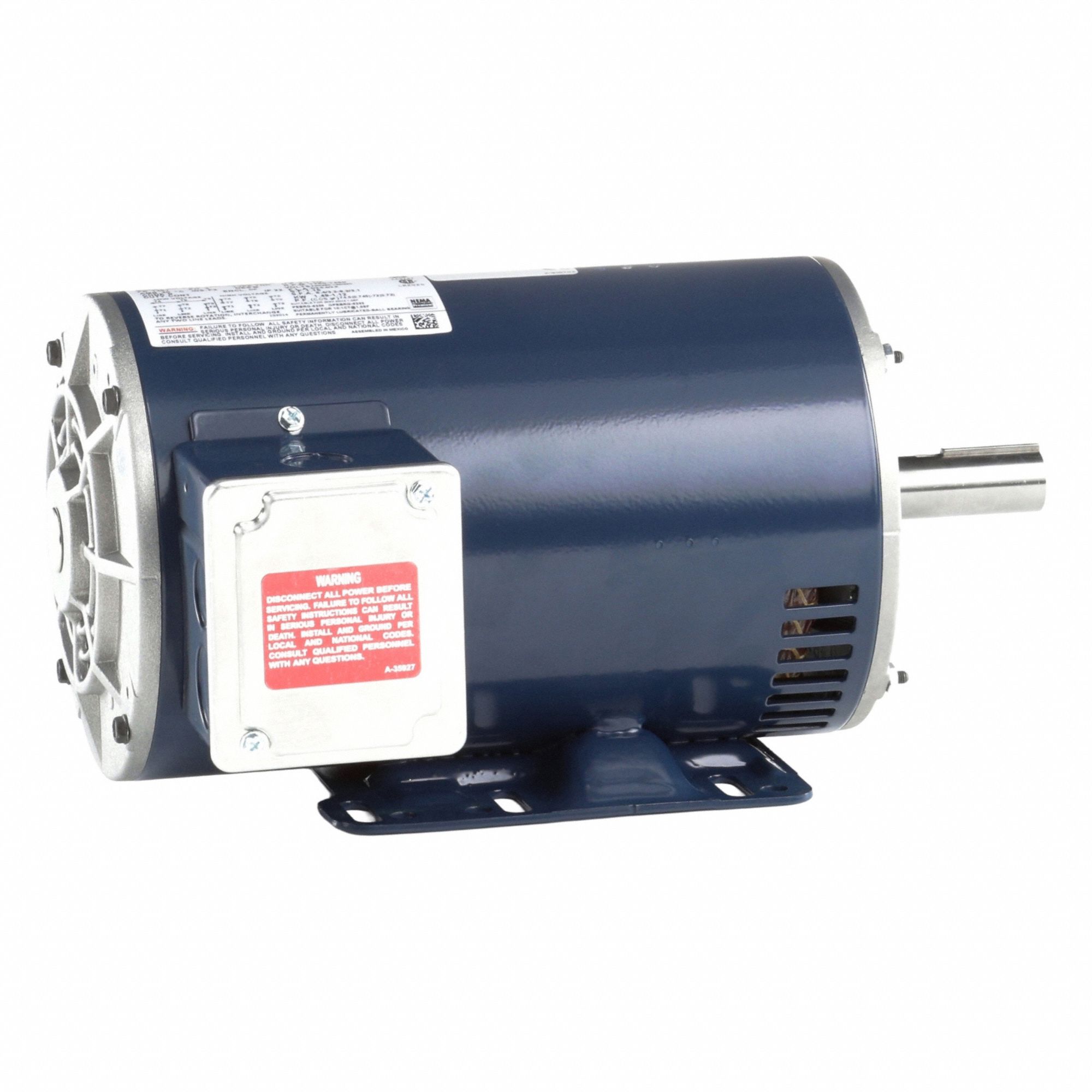

Leeson 3G-OTH-71976 — Spesifikasi Teknis
The LEESON General Purpose Motor: Rigid Base Mount (MPN 145TTDR16352) is a 2 hp, rigid base 3-phase AC motor with an ODP enclosure. It operates at 1,750 RPM and 230/460V AC, drawing 3.0 A full load current at 60 Hz.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 230/460V |
| Type | Open Drip Proof, 2 hp, 1,750 RPM |
| Brand | LEESON |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,750 RPM |
| Manufacturer Part Number | 145TTDR16352 |
| Full Load Current @ 60 Hz | 3.0 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
