Leeson 3G-OTH-71887 — Spesifikasi Teknis

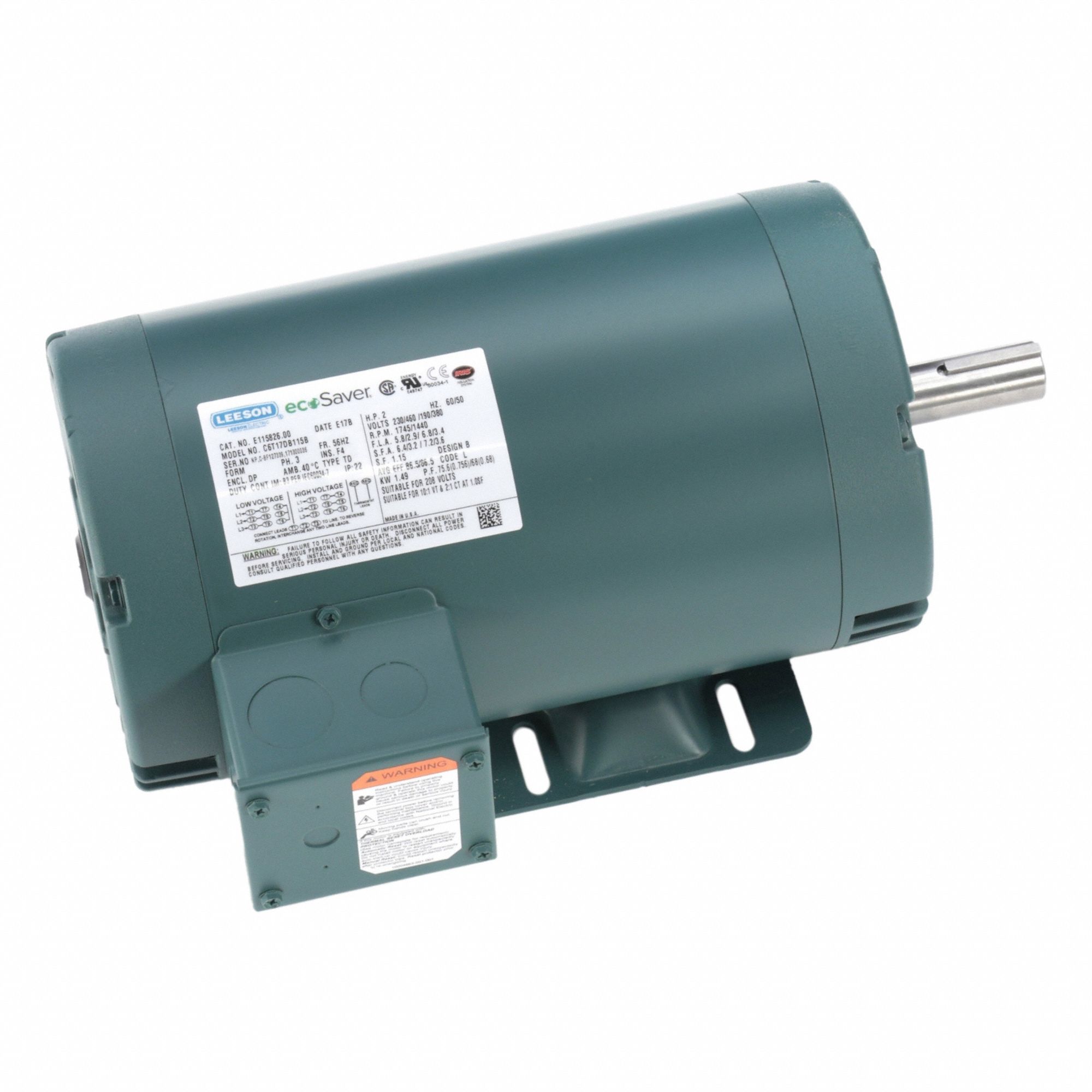

The LEESON General Purpose Motor: Rigid Base Mount (SKU 820J11) is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It operates at 1,745 RPM at 60 Hz with a full load current of 3.0 A at 230/460V AC (MPN E115826.00).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 230/460V |
| Type | Open Drip Proof, 2 hp, 1,745 RPM |
| Brand | LEESON |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,745 RPM |
| Manufacturer Part Number | E115826.00 |
| Full Load Current @ 60 Hz | 3.0 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
