Martin 3G-OTH-126703 — Spesifikasi Teknis

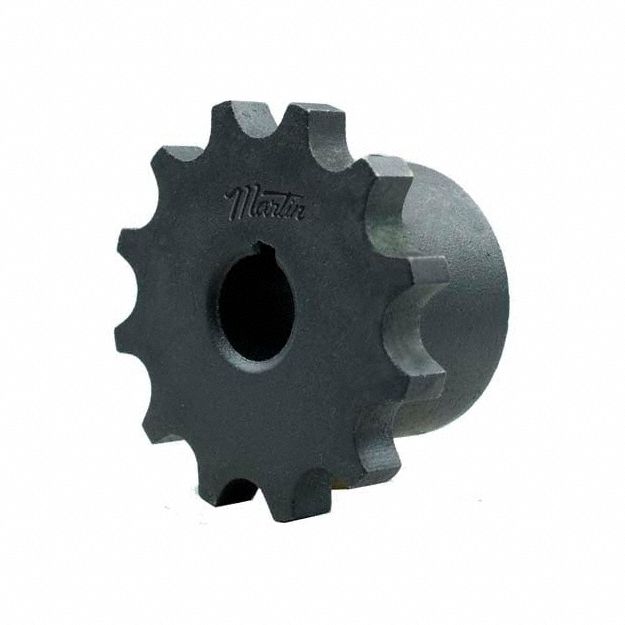

The MARTIN Chain Shaft Coupling Hub: 60 is a taper bushed bore coupling sprocket made of steel, with a round keyed bore and a 2 in bore diameter for keyed shafts. It uses a 2012 bushing size with a bushing bore range of 1/2 to 2 in, installed on the hub side, and features a 3 7/8 in hub diameter (MPN 6020TBH).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Steel, For Keyed Shaft Type |
| Brand | MARTIN |
| Hub Dia | 3 7/8 in |
| Bore Dia | 2 in |
| Bore Type | Round Keyed |
| Chain Number | 60 |
| Hub Material | Steel |
| For Bushing Size | 2012 |
| Bushing Bore Range | 1/2 to 2 in |
| Bushing Install Location | Hub Side |
| Manufacturer Part Number | 6020TBH |
