Mepco 3G-OTH-71166 — Spesifikasi Teknis

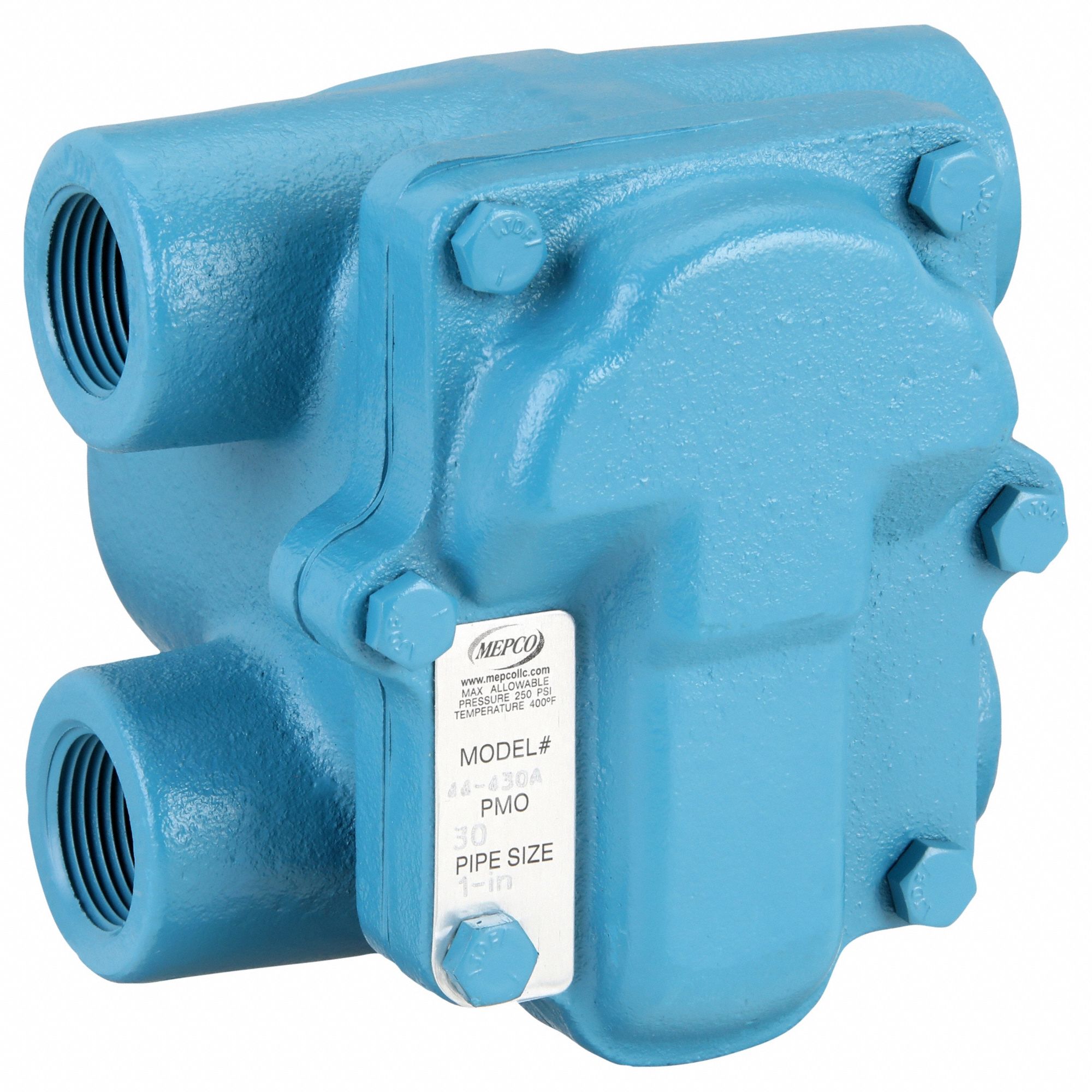

The MEPCO Steam Trap is a Cast Iron H-Pattern Float & Thermostatic Steam Trap, part of the Manufacturer Series 44. It features a 1 in FNPT connection, a capacity of 2,300 lb/hr, a maximum pressure of 30 psi, and a maximum temperature of 450°F. The float is made of Stainless Steel, and the unit is designed for Horizontal installation (MPN 44-430A).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 1 in |
| Max. | 30 psi |
| Type | 2,300 lb/hr, H Pattern |
| Brand | MEPCO |
| Float Material | Stainless Steel |
| Manufacturer Series | 44 |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | 44-430A |
