Mepco 3G-OTH-71340 — Spesifikasi Teknis

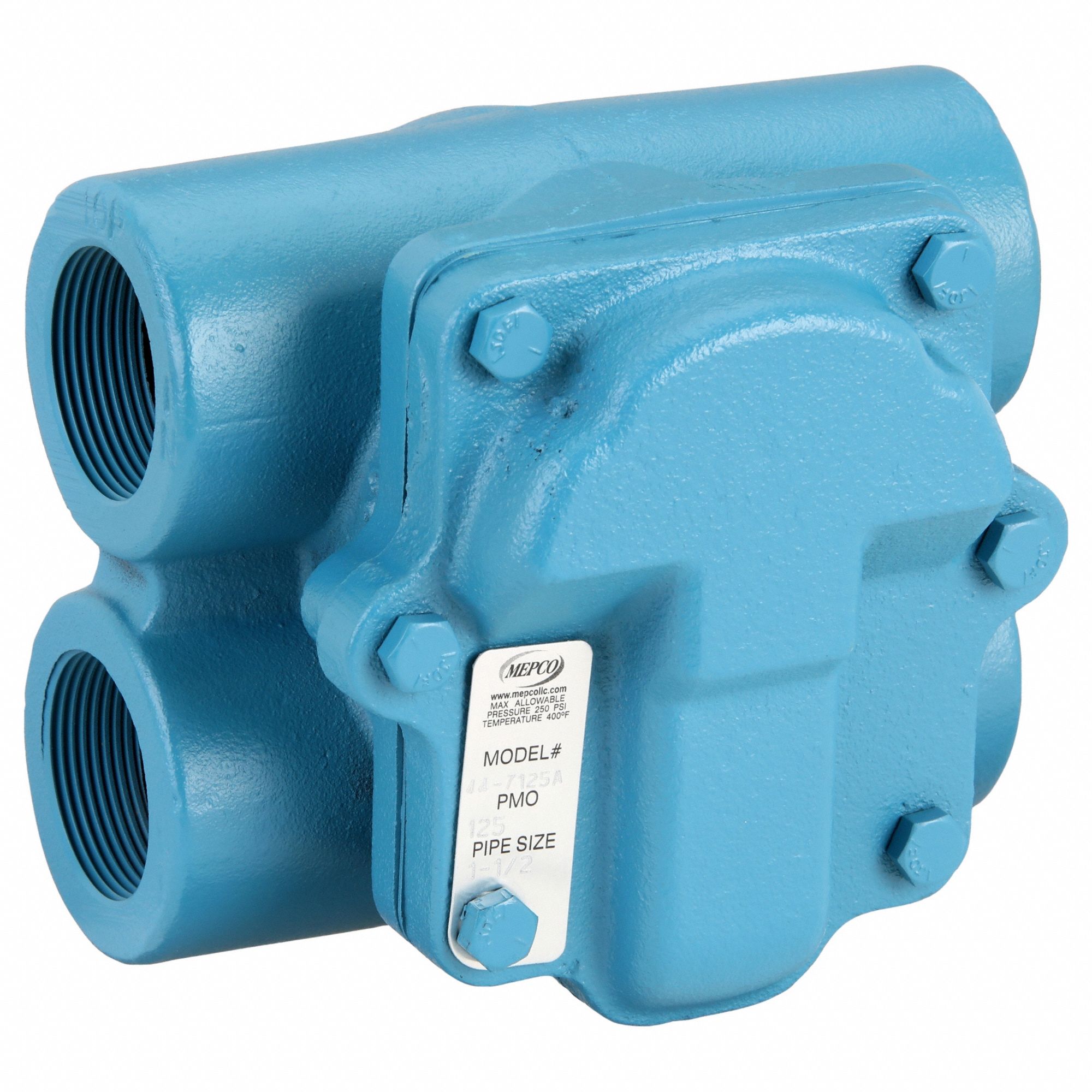

The MEPCO Steam Trap: Cast Iron is a Cast Iron H-Pattern Float & Thermostatic Steam Trap from the Manufacturer Series 44. It features a 1 1/2 in FNPT connection, a capacity of 2,500 lb/hr, and a maximum pressure of 125 psi with a maximum temperature of 450°F. The float is constructed of Stainless Steel, and the unit is designed for Horizontal installation.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 1 1/2 in |
| Max. | 125 psi |
| Type | 2,500 lb/hr, H Pattern |
| Brand | MEPCO |
| Float Material | Stainless Steel |
| Manufacturer Series | 44 |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | 44-7125N |
