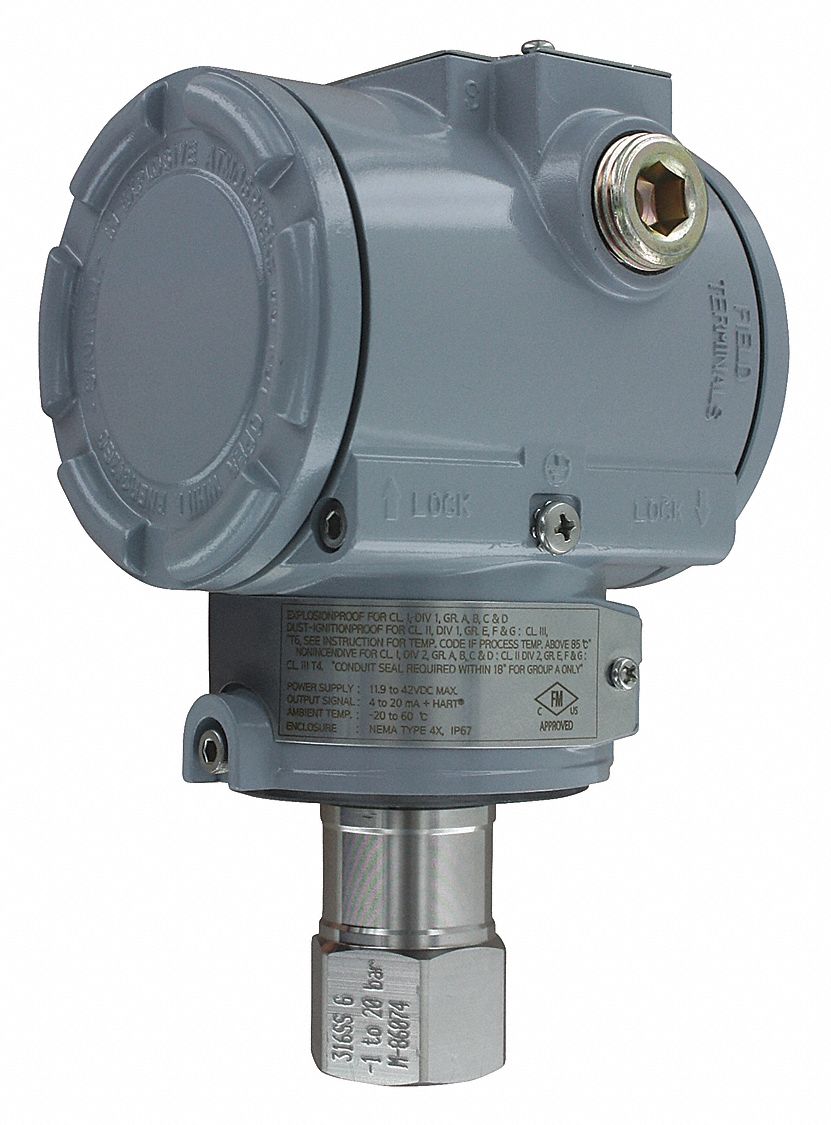

Mercoid 3G-OTH-175623 — Spesifikasi Teknis
The MERCOID 3200G Series Pressure Transmitter (SKU 13A896) is an explosion-proof-rated transmitter with a conduit connection, designed for compound pressure measurement from -14 psi to 580 psi. It features a 4 to 20mA DC output with HART communication, an accuracy of ±0.075% of Full Scale, and an aluminum housing with IP66 and NEMA 4X ratings. The process connection is NPT, and the unit is not specified as intrinsically safe.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 4 to 20mA DC / HART Comm, Screw Terminals, IP66 /4X |
| Brand | MERCOID |
| Output | 4 to 20mA DC / HART Communication |
| Series | 3200G |
| Accuracy | ±0.075% of Full Scale |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Product Type | Explosion-Proof-Rated Transmitter |
| Pressure Range | -14 psi to 580 psi |
| Housing Material | Aluminum |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Pressure Type Measured | Compound |
| Process Connection Type | NPT |
| Manufacturer Part Number | 3200G-2-FM-1-1 |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
