Mersen 3G-OTH-22655 — Spesifikasi Teknis

Name: Mersen 3G-OTH-22655 MERSEN Surge Protection Device: Single Phase, 120V AC, 1 Poles, 2 Wires, L-N, 175 V AC, 600V (L-N) (MPN STP120P07). Key specifications — Voltage: 120V AC; Number of Wires: 2 Wires; Modes of Protection: L-N; Max. Continuing Operating Voltage: 175 V AC; Voltage Protection Rating: 600V (L-N); Short Circuit Current Rating: 200kA; Filtering: No; Enclosure Material: Polyethylene Terephthalate.
Brand: Mersen

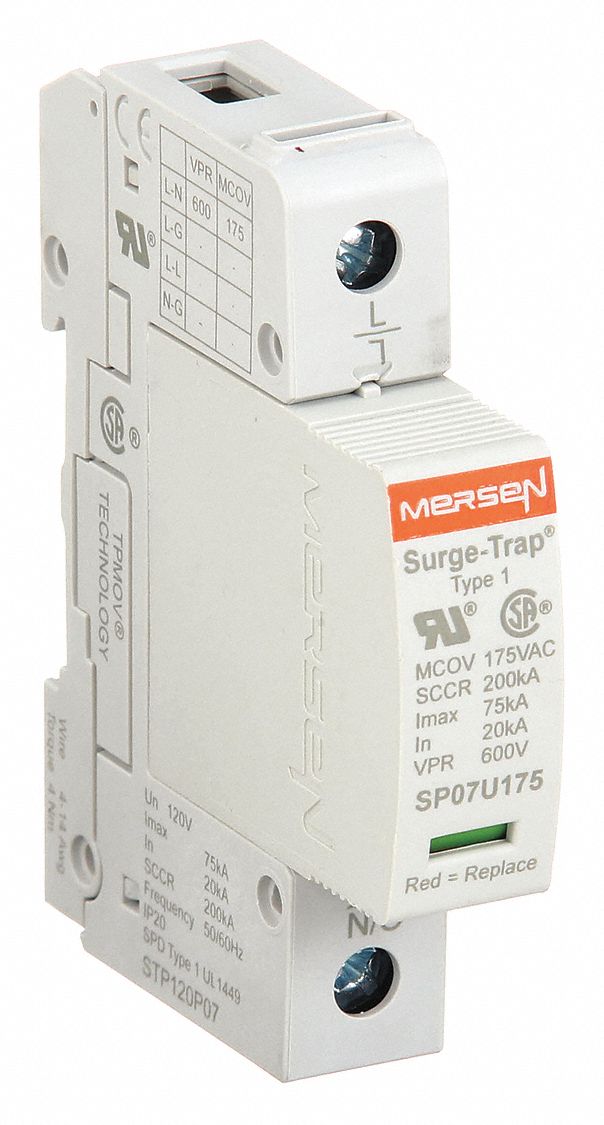

The MERSEN STP120P07 is a single-phase, DIN-rail internal-mount surge protection device (SPD) rated for 120V AC with a 2-wire L-N protection mode. It offers a voltage protection rating of 600V (L-N), a short-circuit current rating of 200kA, and a maximum continuous operating voltage of 175 V AC. The unit features a polyethylene terephthalate enclosure and does not include filtering.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	120V
Type	L-N, 600V (L-N)
Brand	MERSEN
Poles	1
Wires	2
Voltage	120V AC
Filtering	No
Mounting Style	DIN-Rail
Number Of Wires	2 Wires
Enclosure Material	Polyethylene Terephthalate
Modes Of Protection	L-N
Manufacturer Part Number	STP120P07
Voltage Protection Rating	600V (L-N)
Short Circuit Current Rating	200kA
Max. Continuing Operating Voltage	175 V AC
