Mersen 3G-OTH-23032 — Spesifikasi Teknis

Name: Mersen 3G-OTH-23032 MERSEN Surge Protection Device: Single Phase, 120/240V AC, 2 Poles, 3 Wires, L-L/L-N, 175/350 V AC (MPN STP240S07). Key specifications — Voltage: 120/240V AC; Number of Wires: 3 Wires; Modes of Protection: L-N; Max. Continuing Operating Voltage: 175/350 V AC; Voltage Protection Rating: 600V (L-N); Short Circuit Current Rating: 200kA; Filtering: No; Enclosure Material: Polyethylene Terephthalate.
Brand: Mersen

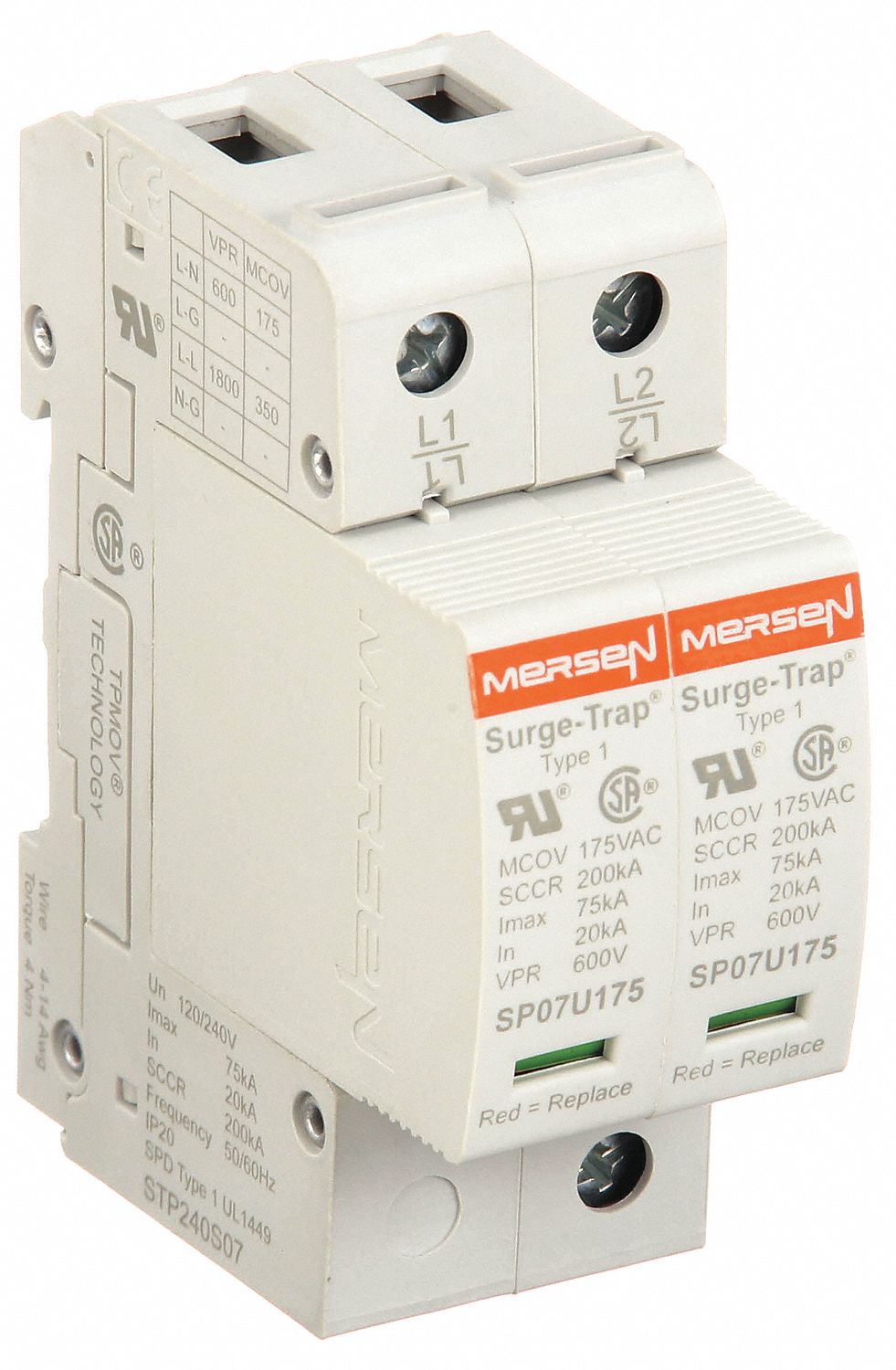

The MERSEN STP240S07 is a single-phase, DIN-rail mount surge protection device (SPD) with a 120/240V AC rating, 3 wires, and L-N protection modes. It features a 200kA short circuit current rating, a 600V (L-N) voltage protection rating, and a max. continuing operating voltage of 175/350 V AC. The enclosure is made of polyethylene terephthalate, and the unit has no filtering.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	120/240V
Type	L-L/L-N
Brand	MERSEN
Poles	2
Wires	3
Voltage	120/240V AC
Filtering	No
Mounting Style	DIN-Rail
Number Of Wires	3 Wires
Enclosure Material	Polyethylene Terephthalate
Modes Of Protection	L-N
Manufacturer Part Number	STP240S07
Voltage Protection Rating	600V (L-N)
Short Circuit Current Rating	200kA
Max. Continuing Operating Voltage	175/350 V AC
