Mersen 3G-OTH-22767 — Spesifikasi Teknis

Name: Mersen 3G-OTH-22767 MERSEN Surge Protection Device: Three Phase, 347/600V AC Wye, 3 Poles, 4 Wires, L-L/L-N, 200kA (MPN STP600Y07). Key specifications — Voltage: 347/600V AC Wye; Number of Wires: 4 Wires; Modes of Protection: L-N; Max. Continuing Operating Voltage: 420/840 V AC; Voltage Protection Rating: 2500V (L-L); Short Circuit Current Rating: 200kA; Filtering: No; Enclosure Material: Polyethylene Terephthalate.
Brand: Mersen

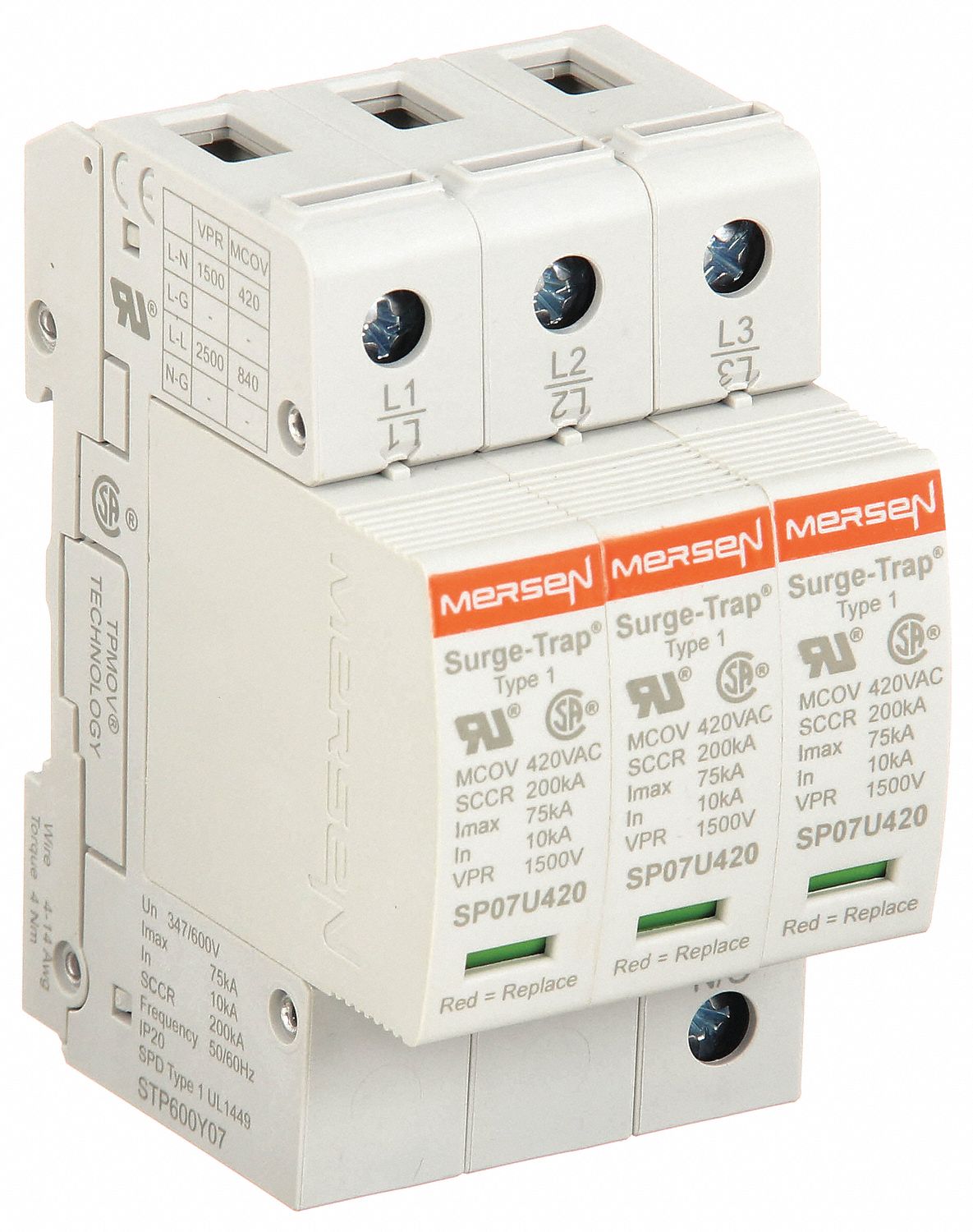

The MERSEN STP600Y07 is a three-phase DIN Rail internal-mount surge protective device (SPD) rated for 347/600V AC Wye systems with 4 wires and 3 poles. It provides L-N mode protection, a voltage protection rating of 2500V (L-L), a short-circuit current rating of 200kA, and a maximum continuous operating voltage of 420/840 V AC. The SPD features a polyethylene terephthalate enclosure and is not equipped with filtering.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	L-L/L-N, 200kA
Brand	MERSEN
Poles	3
Wires	4
AC Wye	347/600V
Voltage	347/600V AC Wye
Filtering	No
Mounting Style	DIN-Rail
Number Of Wires	4 Wires
Enclosure Material	Polyethylene Terephthalate
Modes Of Protection	L-N
Manufacturer Part Number	STP600Y07
Voltage Protection Rating	2500V (L-L)
Short Circuit Current Rating	200kA
Max. Continuing Operating Voltage	420/840 V AC
