Metz Connect 3G-OTH-09843 — Spesifikasi Teknis

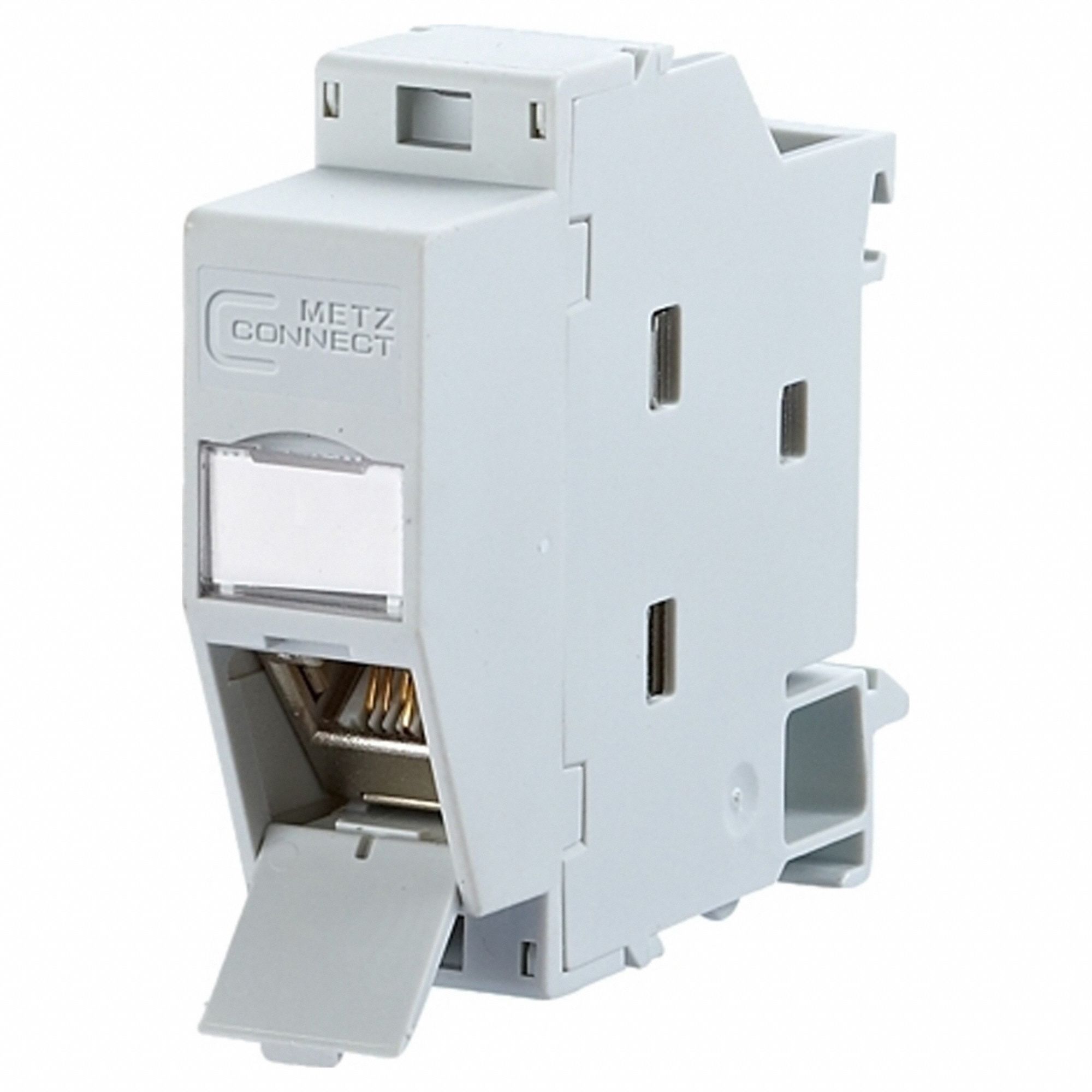

The METZ CONNECT Rail-Mount Module is a Cat6A RJ45 connector module designed for data applications. This female connector features a 45° angled orientation, insulation displacement connection, and a light gray zinc die-cast housing with an IP20 rating. It is a DIN Rail module with part number 1309107003-E.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Data/HDBaseT/Power, Cable, Zinc Die-Cast |
| Poles | 8 |
| Angled | 45° |
| IP Rating | IP20 |
| Application | Data |
| Mounting Type | Cable |
| Connection Type | Insulation Displacement |
| Connector Color | Light Gray |
| Connector Gender | Female |
| Housing Material | Zinc Die-Cast |
| RJ45 Connector Type | DIN Rail Module |
| Performance Category | Cat6A |
| Connector Orientation | 45° Angled |
| Manufacturer Part Number | 1309107003-E |
