Metz Connect 3G-OTH-09898 — Spesifikasi Teknis

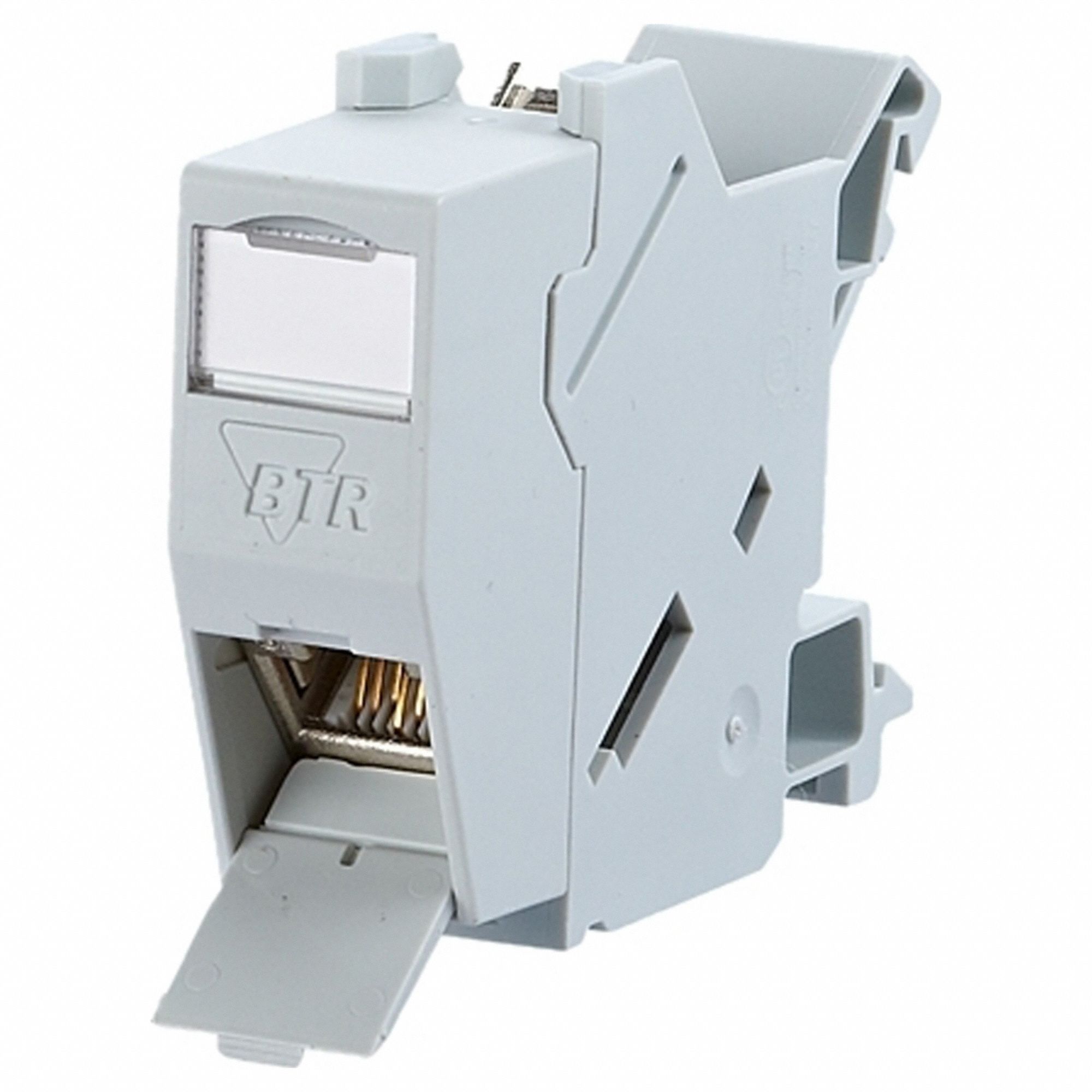

The METZ CONNECT Rail-Mount Module is a Cat6A female RJ45 connector module designed for DIN rail mounting. It features a 45° angled orientation, zinc die-cast housing, and IP20 rating, with insulation displacement connection for cable mounting. This module supports HDBaseT applications and is available in light gray.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Data/HDBaseT/Power, Cable, Zinc Die-Cast |
| Poles | 8 |
| Angled | 45° |
| IP Rating | IP20 |
| Application | HDBaseT |
| Mounting Type | Cable |
| Connection Type | Insulation Displacement |
| Connector Color | Light Gray |
| Connector Gender | Female |
| Housing Material | Zinc Die-Cast |
| RJ45 Connector Type | DIN Rail Module |
| Performance Category | Cat6A |
| Connector Orientation | 45° Angled |
| Manufacturer Part Number | 1309426003-E |
