Metz Connect 3G-OTH-13714 — Spesifikasi Teknis

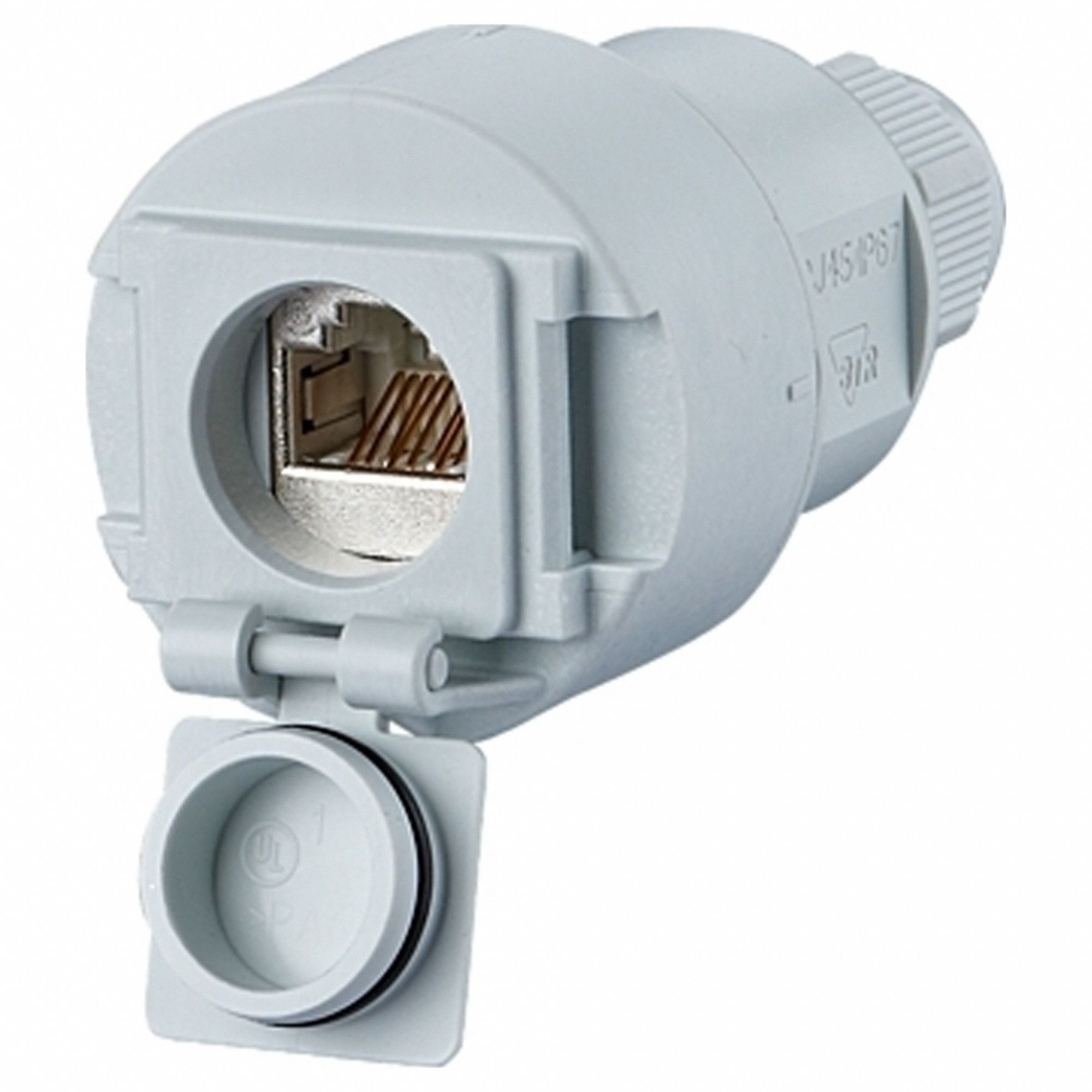

The METZ CONNECT Cable Coupler is a Cat6A RJ45 connector assembly with punch-down connections, designed for HDBaseT applications. This female straight connector features a zinc die-cast housing with an IP67 rating and uses insulation displacement (IDC) technology for cable mounting. The light gray connector supports 8 poles and is identified by manufacturer part number 1309415003-E.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Data/HDBaseT/Power, Straight, Cable, Female Straight |
| Poles | 8 |
| IP Rating | IP67 |
| Application | HDBaseT |
| Mounting Type | Cable |
| Connection Type | Insulation Displacement |
| Connector Color | Light Gray |
| Connector Gender | Female |
| Housing Material | Zinc Die-Cast |
| RJ45 Connector Type | IDC Connector |
| Performance Category | Cat6A |
| Connector Orientation | Straight |
| Manufacturer Part Number | 1309415003-E |
