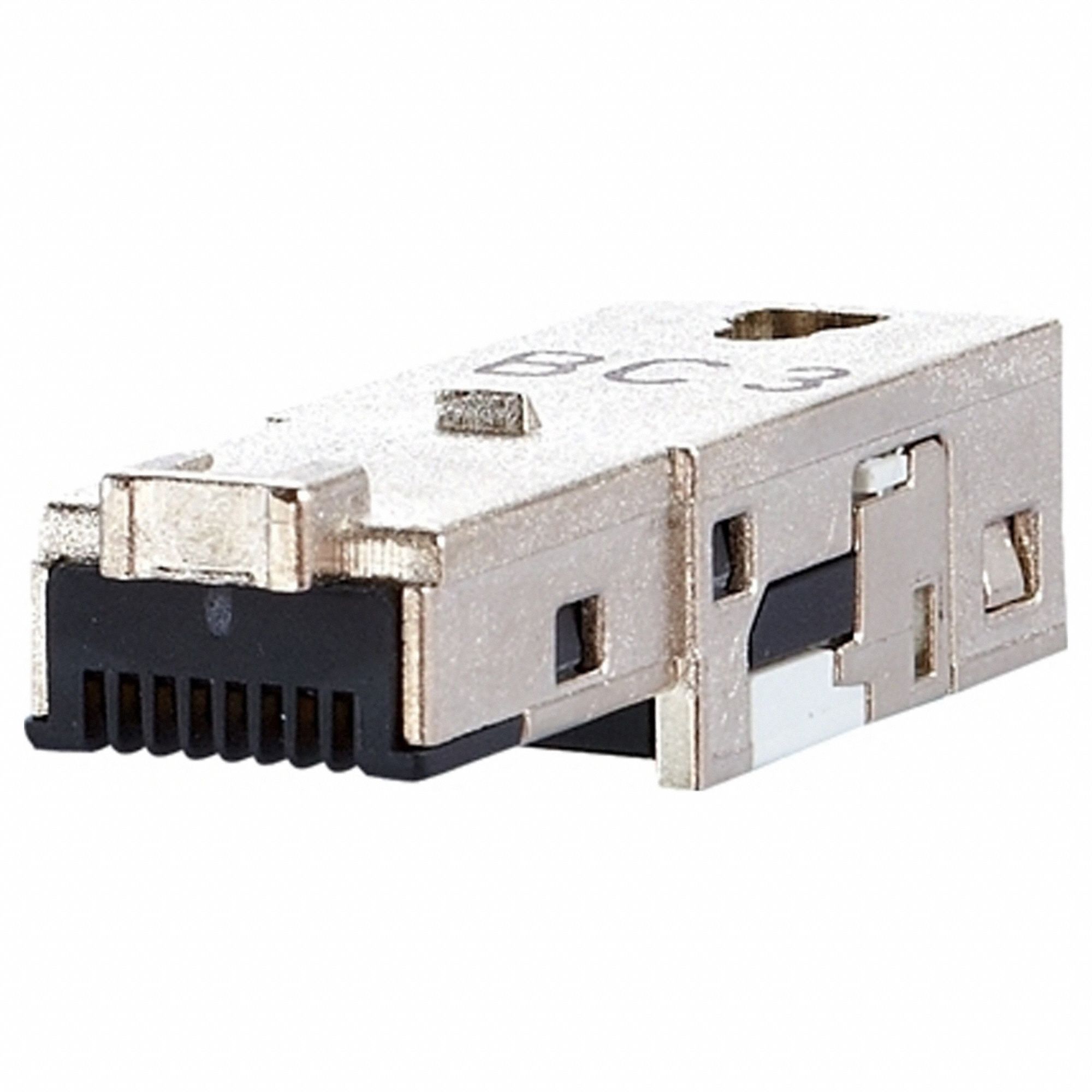

Metz Connect 3G-OTH-10022 — Spesifikasi Teknis
The METZ CONNECT Field Plug Insert is a Cat6 device-side RJ45 connector designed for HDBaseT applications. This male, straight connector features a zinc die-cast housing with an IP67 rating and uses insulation displacement technology for cable mounting. It is available in a metallike finish and is identified by manufacturer part number 1401400810-I.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Data/HDBaseT/Power, Straight, Cable, Male Straight |
| Poles | 8 |
| IP Rating | IP67 |
| Application | HDBaseT |
| Mounting Type | Cable |
| Connection Type | Insulation Displacement |
| Connector Color | Metallike |
| Connector Gender | Male |
| Housing Material | Zinc Die-Cast |
| RJ45 Connector Type | E-DAT RJ45 Cat6 Field Plug Insert |
| Performance Category | Cat6 |
| Connector Orientation | Straight |
| Manufacturer Part Number | 1401400810-I |
