Morrill 3G-OTH-55743 — Spesifikasi Teknis

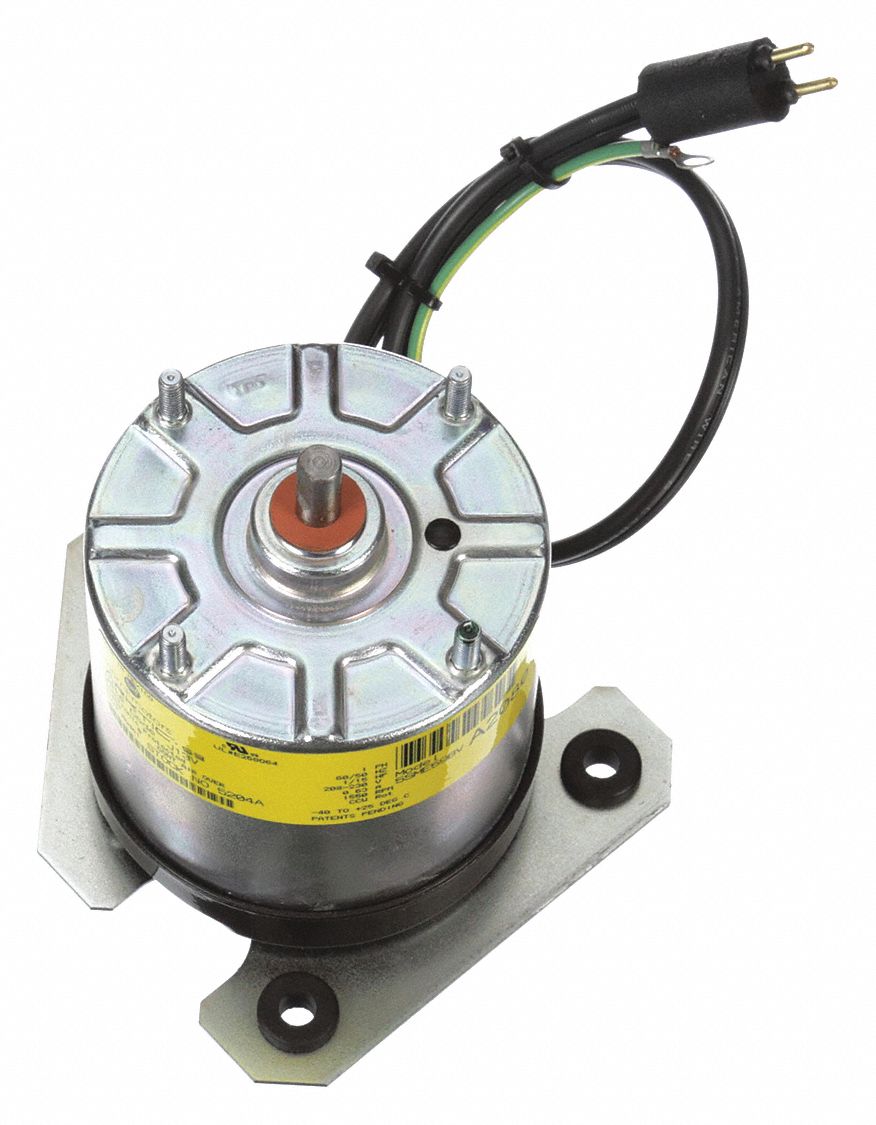

The MORRILL Arktic® 59 is a direct-drive blower motor from the Arktic® Series of EC Motors, designed as a direct replacement for PSC direct-drive induction motors in Hussman/Krack units. This constant RPM, 1/15 hp (52 W) motor features a 3.3 frame size, TEAO enclosure, and operates at 1,550 RPM with 0.63 A full load amps at 208-230V AC. It includes a special mounting bracket and is not compatible with external controllers.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Stud, ECM, Totally Enclosed Air-Over |
| Brand | MORRILL |
| Includes | Special Mounting Bracket - Direct Replacement for Hussman/Krack Units |
| Frame Size | 3.3 |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | TEAO |
| Rated Horsepower | 1/15 hp |
| Horsepower/Wattage | 1/15 hp52 W |
| For Motor Replacement | PSC Direct-Drive Induction Motor |
| Nameplate RPM @ 60 Hz | 1,550 RPM |
| Full Load Amps @ 60 Hz | 0.63 A |
| Includes User Interface | No |
| Manufacturer Part Number | 5204A |
| Nameplate Voltage @ 60 Hz | 208-230V AC |
| External Controller Compatible | No |
| Compatible With External Controller | Not External Control Compatible |
