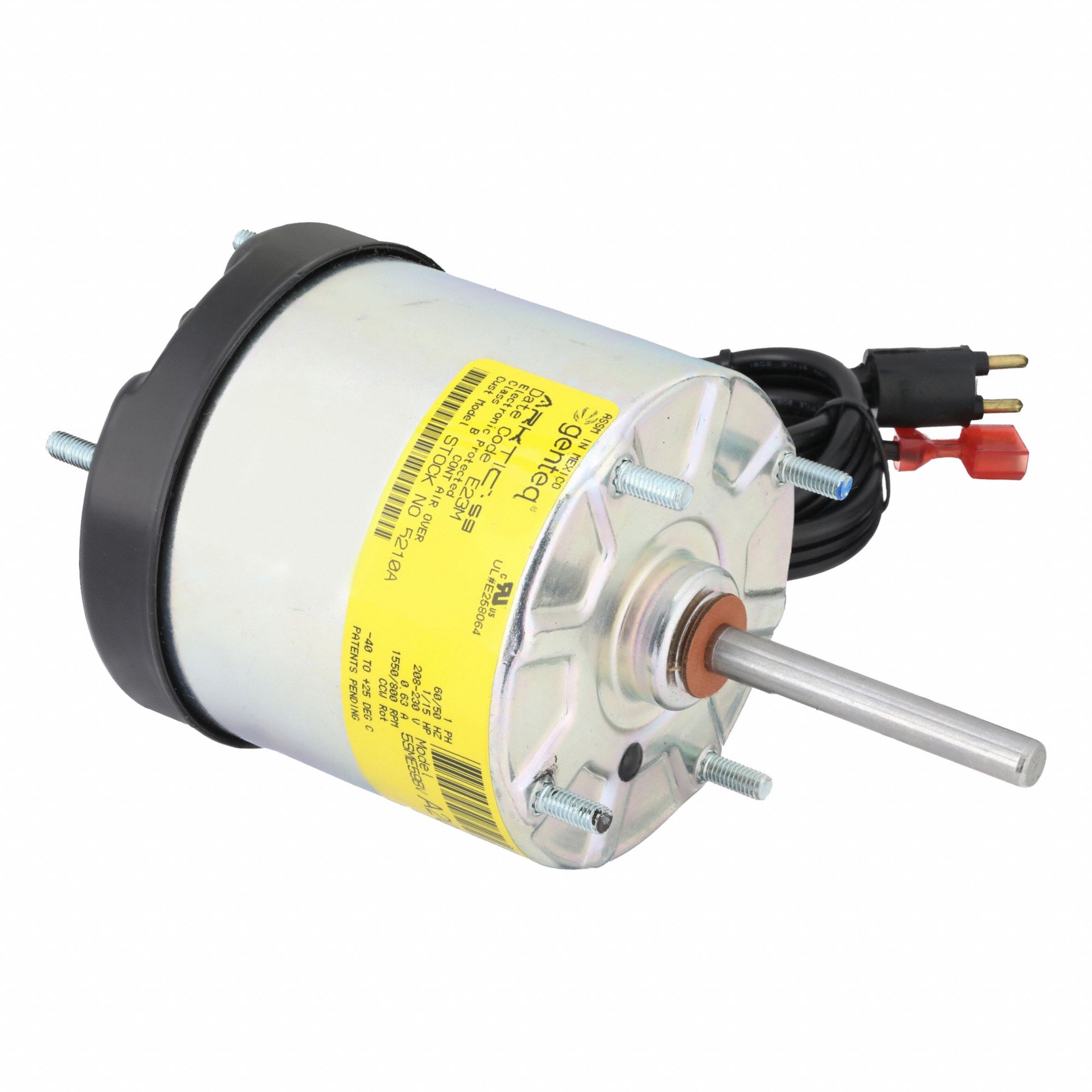

Morrill 3G-OTH-55778 — Spesifikasi Teknis
The MORRILL Arktic® 59 is a Non-Standard frame size, Totally Enclosed Air-Over (TEAO) ECM motor from the Arktic® Series, designed as a constant RPM replacement for PSC direct-drive induction motors. It operates at 1,550 RPM and 0.63 A full load amps on 208-230V AC at 60 Hz, with a rated horsepower of 1/15 hp (52 W). This unit bearing motor (MPN 5210A) does not include a user interface and is not compatible with external controllers.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Non-Std Frame Size, Stud, ECM, Totally Enclosed Air-Over |
| Brand | MORRILL |
| Frame Size | Non-Standard |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | TEAO |
| Rated Horsepower | 1/15 hp |
| Horsepower/Wattage | 1/15 hp52 W |
| For Motor Replacement | PSC Direct-Drive Induction Motor |
| Nameplate RPM @ 60 Hz | 1,550 RPM |
| Full Load Amps @ 60 Hz | 0.63 A |
| Includes User Interface | No |
| Manufacturer Part Number | 5210A |
| Nameplate Voltage @ 60 Hz | 208-230V AC |
| External Controller Compatible | No |
| Compatible With External Controller | Not External Control Compatible |
