Morrill 3G-OTH-55767 — Spesifikasi Teknis

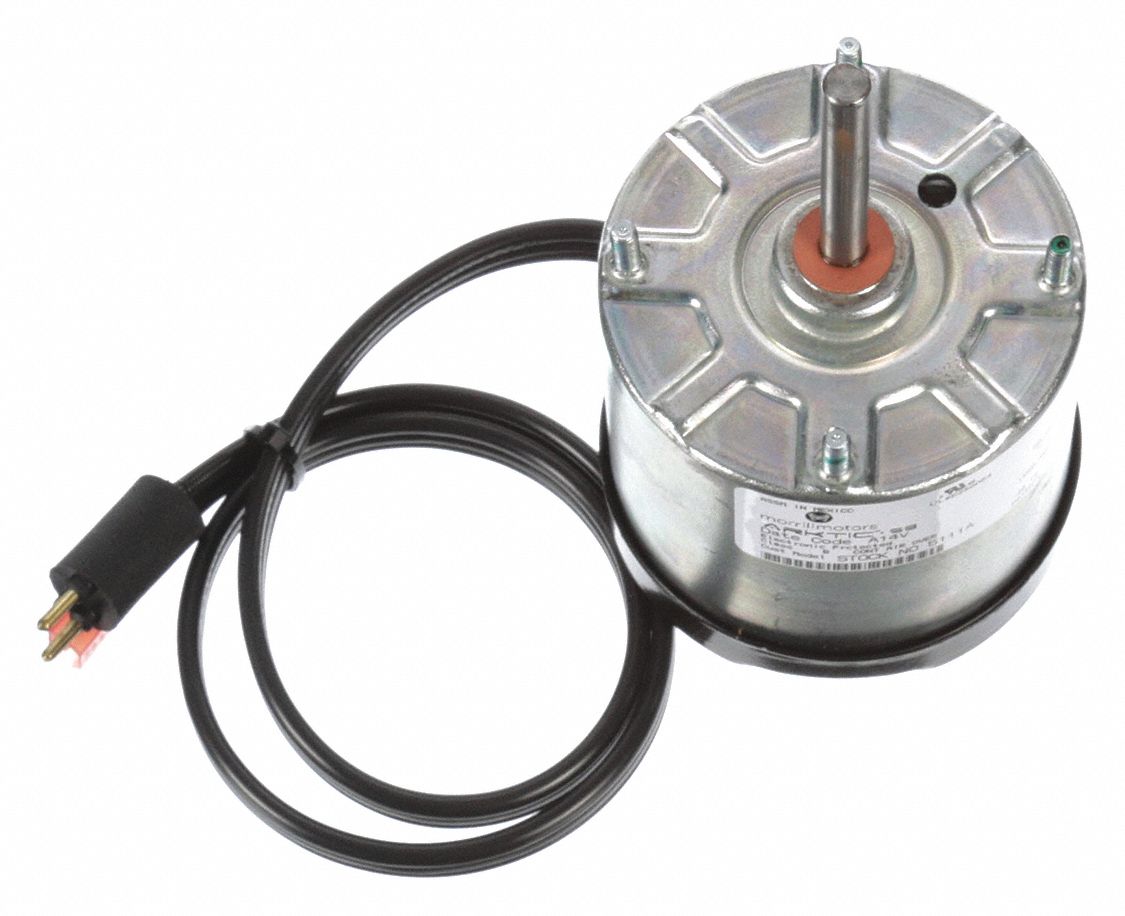

The MORRILL Arktic® 59 is a Non-Standard frame size, constant RPM ECM motor (MPN 5111A) designed as a replacement for PSC direct-drive induction motors. It features a TEAO enclosure, rated 1/15 hp (52 W), 1,550 RPM, 1.1 A full load amps, and 115V AC at 60 Hz. This unit bearing motor is not compatible with external controllers and does not include a user interface.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Non-Std Frame Size, Stud, ECM, Totally Enclosed Air-Over |
| Brand | MORRILL |
| Frame Size | Non-Standard |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | TEAO |
| Rated Horsepower | 1/15 hp |
| Horsepower/Wattage | 1/15 hp52 W |
| For Motor Replacement | PSC Direct-Drive Induction Motor |
| Nameplate RPM @ 60 Hz | 1,550 RPM |
| Full Load Amps @ 60 Hz | 1.1 A |
| Includes User Interface | No |
| Manufacturer Part Number | 5111A |
| Nameplate Voltage @ 60 Hz | 115V AC |
| External Controller Compatible | No |
| Compatible With External Controller | Not External Control Compatible |
