Multifan 3G-OTH-80174 — Spesifikasi Teknis

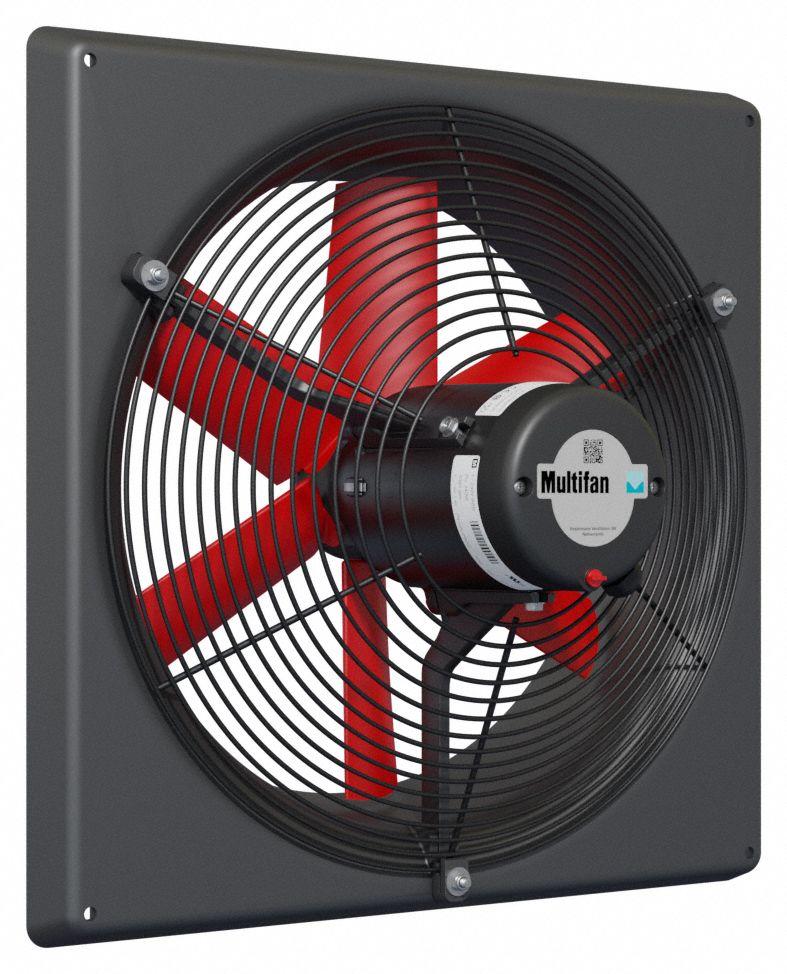

The MULTIFAN Exhaust Fan: Direct Drive is a corrosion-resistant direct-drive panel exhaust fan (SKU 21A101, MPN V4D40K5M71100) with a 16-inch blade, 1/4 hp, and 2,970 cfm. It features a fiberglass frame, cast construction, a 3-phase motor with Class F insulation, and a totally enclosed air-over enclosure. The fan operates on 460V AC with variable speed and includes intake guards.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 460V |
| Type | 1/4 hp, 2,970 cfm, 3 ph, Totally Enclosed |
| Blade | 16 in |
| Brand | MULTIFAN |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | 3-Phase |
| Frame Material | Fiberglass |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class F |
| Number Of Speeds | Variable |
| Nameplate Voltage | 460V AC |
| Guard Type Subheads | With Intake Guards |
| Method Of Construction | Cast |
| Manufacturer Part Number | V4D40K5M71100 |
