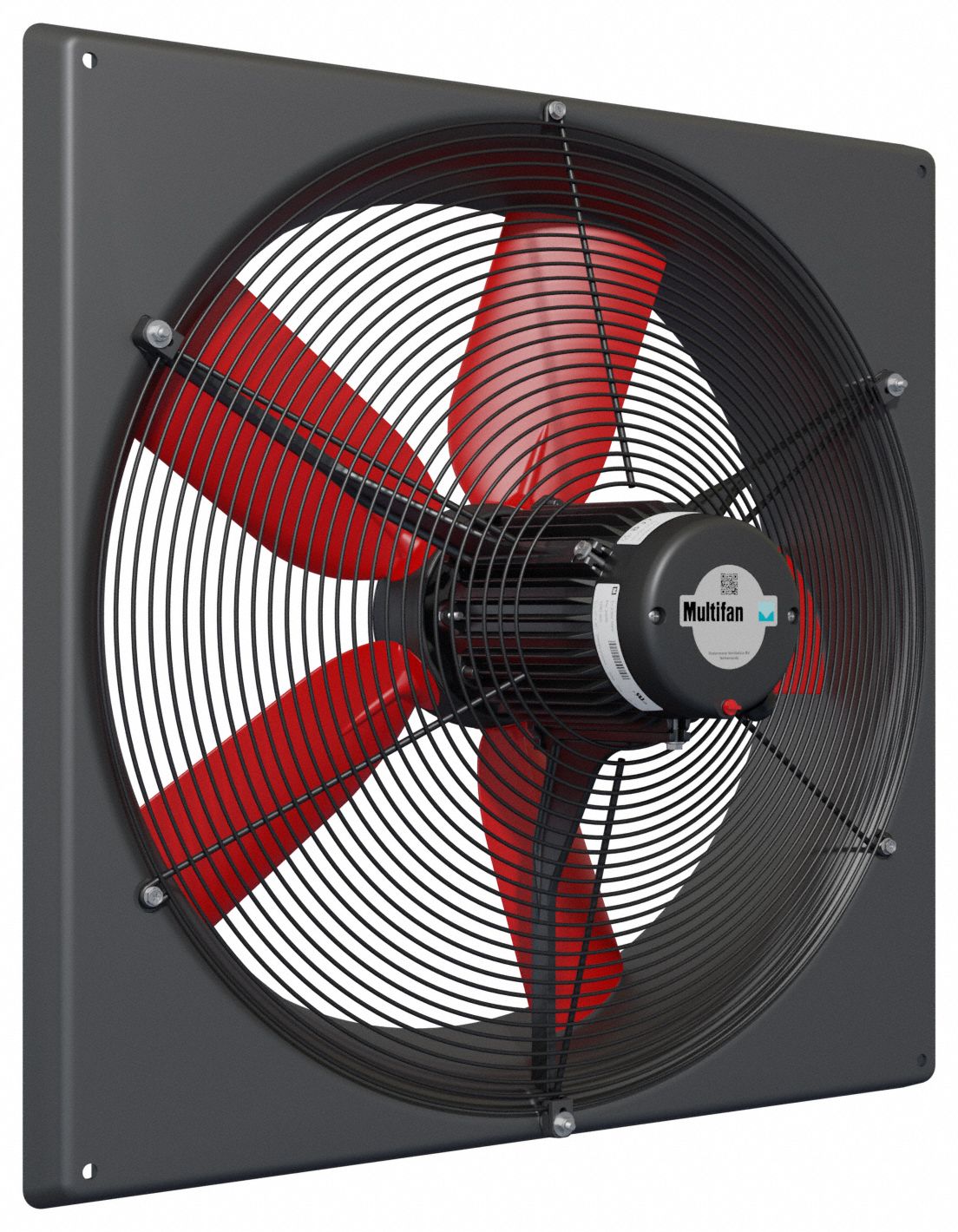

Multifan 3G-OTH-80344 — Spesifikasi Teknis
The MULTIFAN V4D63K8M71100 is a corrosion-resistant direct-drive panel exhaust fan with a 24-inch blade, 2 hp motor, and 10,660 cfm airflow at 460V AC, 3-phase. It features a fiberglass frame, cast construction, and a totally enclosed air-over motor with Class F insulation. The fan is assembled with intake guards and offers variable-speed operation.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 460V |
| Type | 2 hp, 10,660 cfm, 3 ph, Totally Enclosed |
| Blade | 24 in |
| Brand | MULTIFAN |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | 3-Phase |
| Frame Material | Fiberglass |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class F |
| Number Of Speeds | Variable |
| Nameplate Voltage | 460V AC |
| Guard Type Subheads | With Intake Guards |
| Method Of Construction | Cast |
| Manufacturer Part Number | V4D63K8M71100 |
