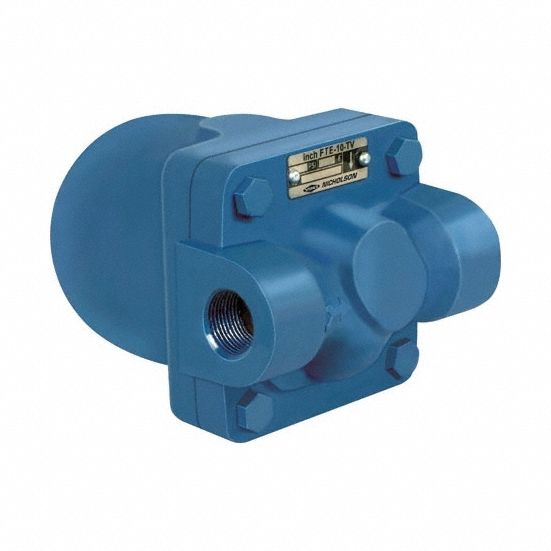

Nicholson 3G-OTH-73205 — Spesifikasi Teknis

Name: Nicholson 3G-OTH-73205 Steam Trap: Cast Iron, 1/2 in FNPT, 1,300 lb/hr, 200 psi Max., 450°F Max., In-line (MPN 1/2 FTE-200). Key specifications — Brand: NICHOLSON; Installation Orientation: Horizontal; Float Material: Stainless Steel; Manufacturer Series: FTE.
Brand: Nicholson

The NICHOLSON 1/2 FTE-200 is a cast iron in-line float and thermostatic steam trap from the FTE series. It features a stainless steel float, a 1/2-inch FNPT connection, and is designed for horizontal installation. The trap has a maximum capacity of 1,300 lb/hr, with a maximum pressure of 200 psi and a maximum temperature of 450°F.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
FNPT	1/2 in
Max.	200 psi
Type	1,300 lb/hr, In-line
Brand	NICHOLSON
Float Material	Stainless Steel
Manufacturer Series	FTE
Installation Orientation	Horizontal
Manufacturer Part Number	1/2 FTE-200
