Nicholson 3G-OTH-72807 — Spesifikasi Teknis

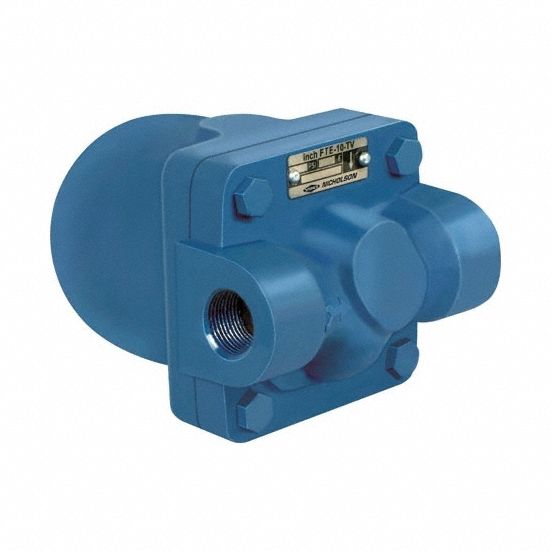

The NICHOLSON 3/4 FTE-65 is a cast iron in-line float and thermostatic steam trap from the FTE series, designed for horizontal installation. It features a stainless steel float and is rated for a maximum pressure of 65 psi and a maximum temperature of 450°F, with a condensate capacity of 1,150 lb/hr. This steam trap connects via a 3/4-inch FNPT connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 3/4 in |
| Max. | 65 psi |
| Type | 1,150 lb/hr, In-line |
| Brand | NICHOLSON |
| Float Material | Stainless Steel |
| Manufacturer Series | FTE |
| Installation Orientation | Horizontal |
| Manufacturer Part Number | 3/4 FTE-65 |
