Nicholson 3G-OTH-72599 — Spesifikasi Teknis

Name: Nicholson 3G-OTH-72599 Steam Trap: Cast Iron, 1/2 in FNPT, 1,200 lb/hr, 20 psi Max., 450°F Max., In-line (MPN 1/2 NFT250-20). Key specifications — Brand: NICHOLSON; Installation Orientation: Horizontal; Float Material: Stainless Steel; Manufacturer Series: NFT 250.
Brand: Nicholson

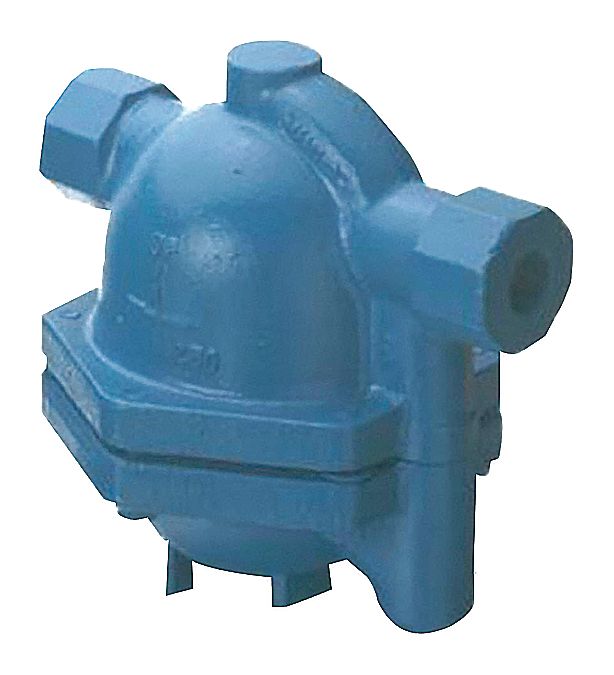

The NICHOLSON Steam Trap: Cast Iron is a Cast Iron In-line Float & Thermostatic Steam Trap from the NFT 250 series. It features a 1/2 in FNPT connection, a maximum capacity of 1,200 lb/hr, a maximum pressure of 20 psi, and a maximum temperature of 450°F. The float is made of Stainless Steel, and the trap is designed for horizontal installation.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
FNPT	1/2 in
Max.	20 psi
Type	1,200 lb/hr, In-line
Brand	NICHOLSON
Float Material	Stainless Steel
Manufacturer Series	NFT 250
Installation Orientation	Horizontal
Manufacturer Part Number	1/2 NFT250-20
