Ntn 3G-OTH-105367 — Spesifikasi Teknis

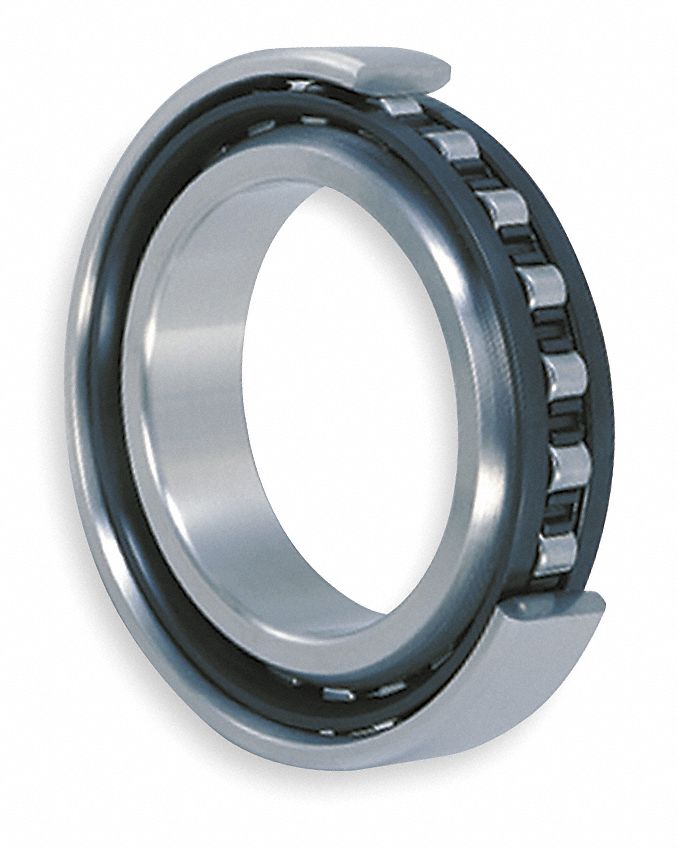

The NTN Cylindrical Roller Bearing: 308 is a high-clearance cylindrical roller bearing with an NU design, featuring a 40 mm bore, 90 mm OD, and 23 mm overall width. It is constructed with alloy steel rings and a brass cage, and is identified by manufacturer part number NU308G1C3. This metric bearing is designed for applications requiring high radial load capacity and axial displacement accommodation.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| OD | 90 mm |
| Bore | 40 mm |
| Type | Cylindrical, Brass |
| Brand | NTN |
| Overall Wd | 23 mm |
| Ring Material | Alloy Steel |
| System Of Measurement | Metric |
| Bearing Industry Number | 308 |
| Manufacturer Part Number | NU308G1C3 |
| Cylindrical Bearing Design | NU |
