Ntn 3G-OTH-109399 — Spesifikasi Teknis

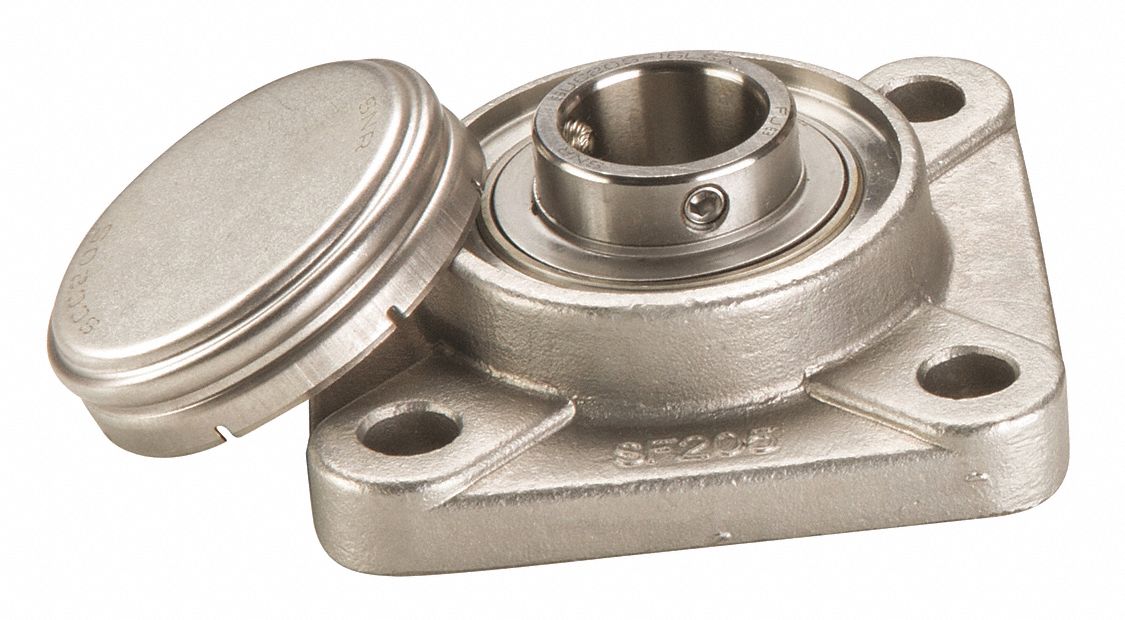

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 3/4 in cylindrical bore and a closed cap. It features set screws, a 7/16 in mounting bolt size, and is lubricated with FDA/USDA-H1 solid grease. This inch-system bearing measures 3 3/8 in length by 1 5/16 in width.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 3 3/8 in |
| Wd | 1 5/16 in |
| Bore | 3/4 in |
| Type | SS, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 7/16 in |
| Included Bearing Cap | Closed Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCF204-12CCFG1 |
