Ntn 3G-OTH-102399 — Spesifikasi Teknis

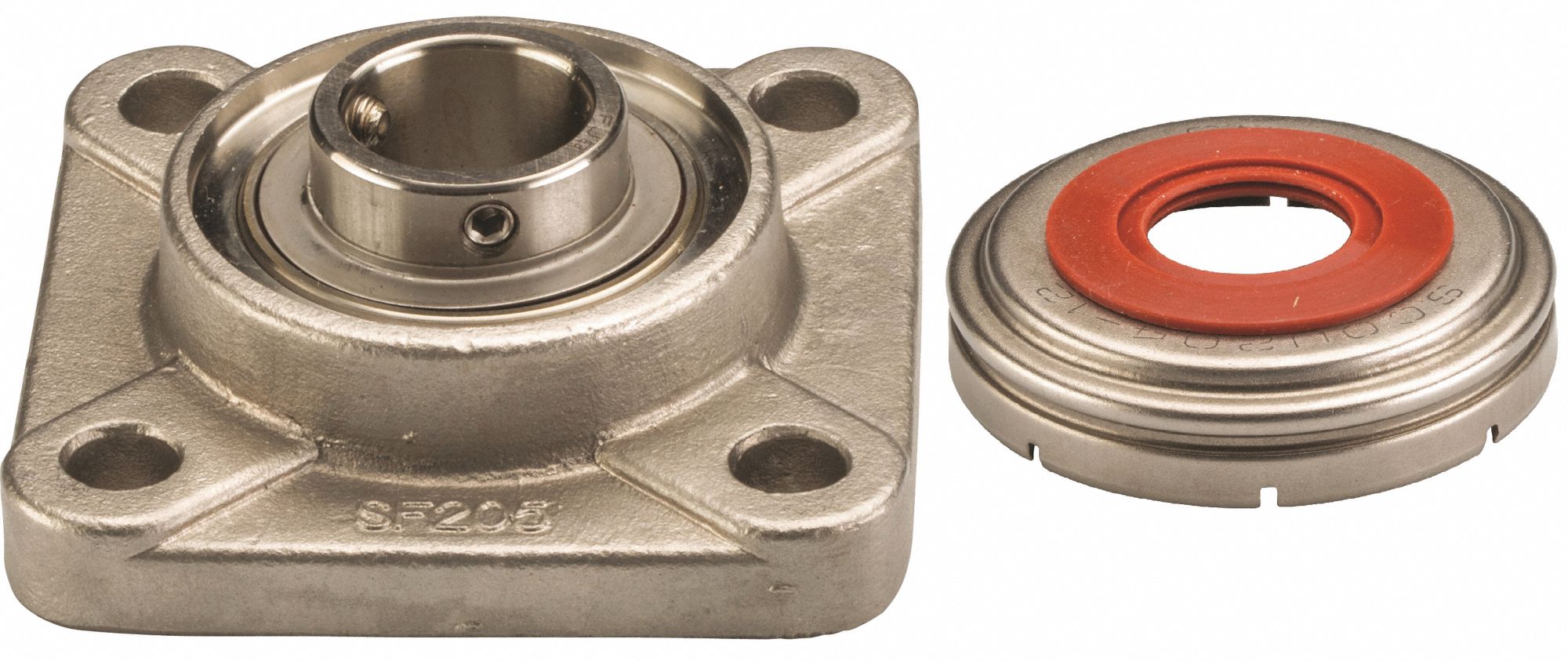

The NTN SUCF207-20C0FG1 is a 4-bolt flange bearing of the radial ball type, designed as a food-grade flange-mount ball bearing. It features a 1 1/4 in cylindrical bore, an open cap, and is lubricated with FDA/USDA-H1 solid grease. The bearing uses 1/2 in mounting bolts and set screws, with overall dimensions of 4 19/32 in length and 1 3/4 in width, in an inch system of measurement.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 4 19/32 in |
| Wd | 1 3/4 in |
| Bore | 1 1/4 in |
| Type | SS, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 1/2 in |
| Included Bearing Cap | Open Cap |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCF207-20C0FG1 |
