Ntn 3G-OTH-121382 — Spesifikasi Teknis

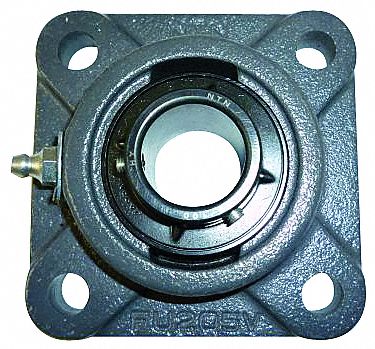

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 30 mm cylindrical bore, cast iron housing, and set screw locking. It uses NLGI #3 equivalent lubricant and has a mounting bolt size of M10, with overall dimensions of 108.7 mm length and 42.1 mm width (MPN UCFU-30).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 108.7 mm |
| Wd | 42.1 mm |
| Bore | 30 mm |
| Type | Cast Iron, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | UCFU-30 |
