Ntn 3G-OTH-115171 — Spesifikasi Teknis

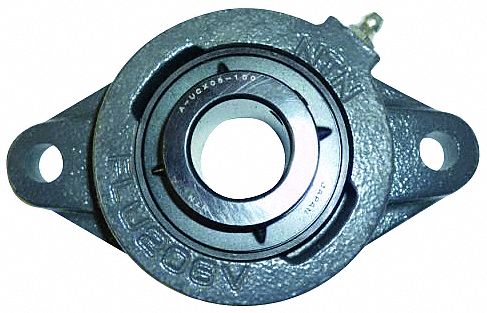

The NTN 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 20 mm cylindrical bore. It features a cast iron housing, set screw locking, and is lubricated with NLGI #3 equivalent grease. This metric unit has a mounting bolt size of M10 and overall dimensions of 61 mm length and 37.3 mm width.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 61 mm |
| Wd | 37.3 mm |
| Bore | 20 mm |
| Type | Cast Iron, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | UCFLU-20 |
