Ntn 3G-OTH-113224 — Spesifikasi Teknis

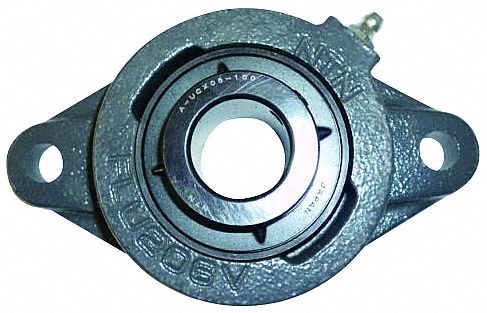

The NTN 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 25 mm cylindrical bore, cast iron housing, and set screw locking. It features NLGI #3 equivalent lubricant and an M10 mounting bolt size, with overall dimensions of 70 mm length and 38.9 mm width (MPN UCFLU-25). This metric unit is designed for radial load applications requiring a compact, two-bolt flange configuration.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 70 mm |
| Wd | 38.9 mm |
| Bore | 25 mm |
| Type | Cast Iron, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | UCFLU-25 |
