Ntn 3G-OTH-115533 — Spesifikasi Teknis

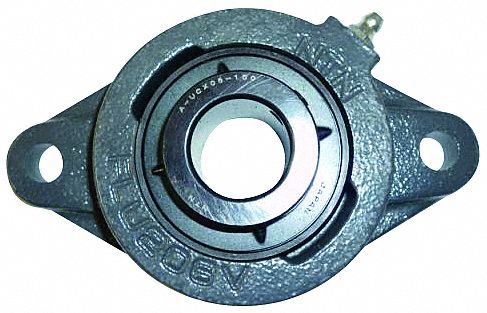

The NTN 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 35 mm cylindrical bore, cast iron housing, and set screw locking. It features a mounting bolt size of M12, dimensions of 96 mm length and 46.4 mm width, and is lubricated with NLGI #3 equivalent grease. This metric unit is designed for radial ball bearing applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 96 mm |
| Wd | 46.4 mm |
| Bore | 35 mm |
| Type | Cast Iron, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | M12 |
| System Of Measurement | Metric |
| Manufacturer Part Number | UCFLU-35 |
