Ntn 3G-OTH-112775 — Spesifikasi Teknis

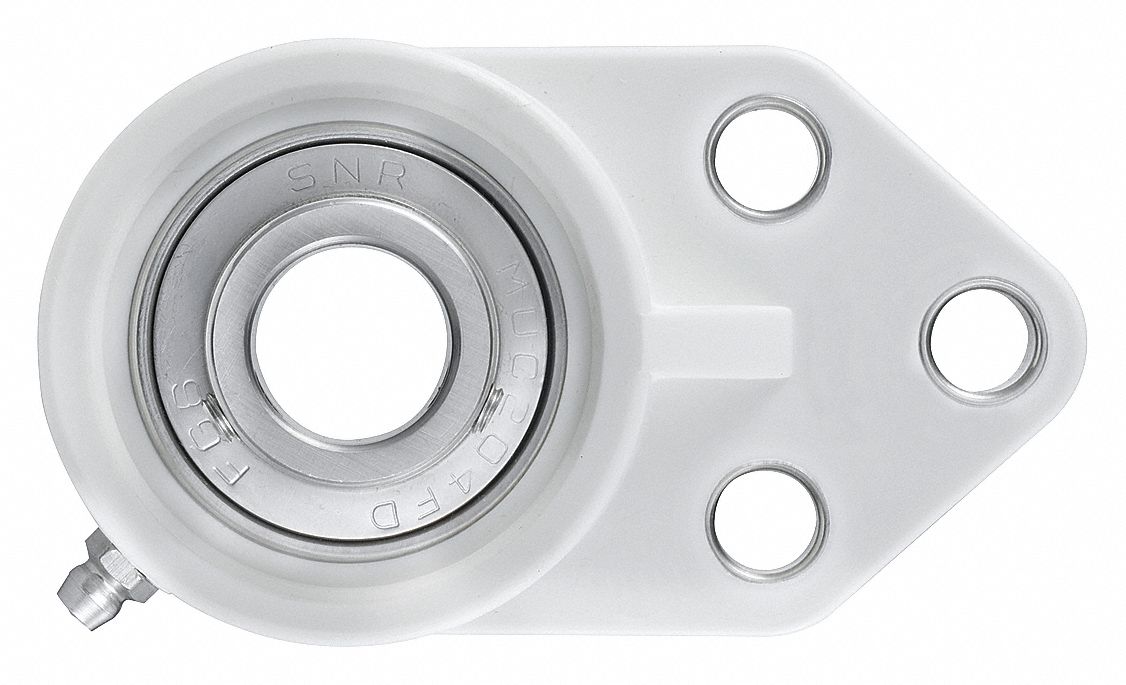

The NTN 3 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 3/4 in cylindrical bore, designed for inch-system applications. It features FDA/USDA-H1 solid grease lubrication and a polymer housing with set screws, using a 7/16 in mounting bolt size. The bearing has a length of 2 7/16 in and a height of 3 in, with no included bearing cap.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Ht | 3 in |
| Lg | 2 7/16 in |
| Bore | 3/4 in |
| Type | Polymer, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | 7/16 in |
| Included Bearing Cap | None |
| System Of Measurement | Inch |
| Manufacturer Part Number | ZUCFBL204-12 |
