Ntn 3G-OTH-104852 — Spesifikasi Teknis

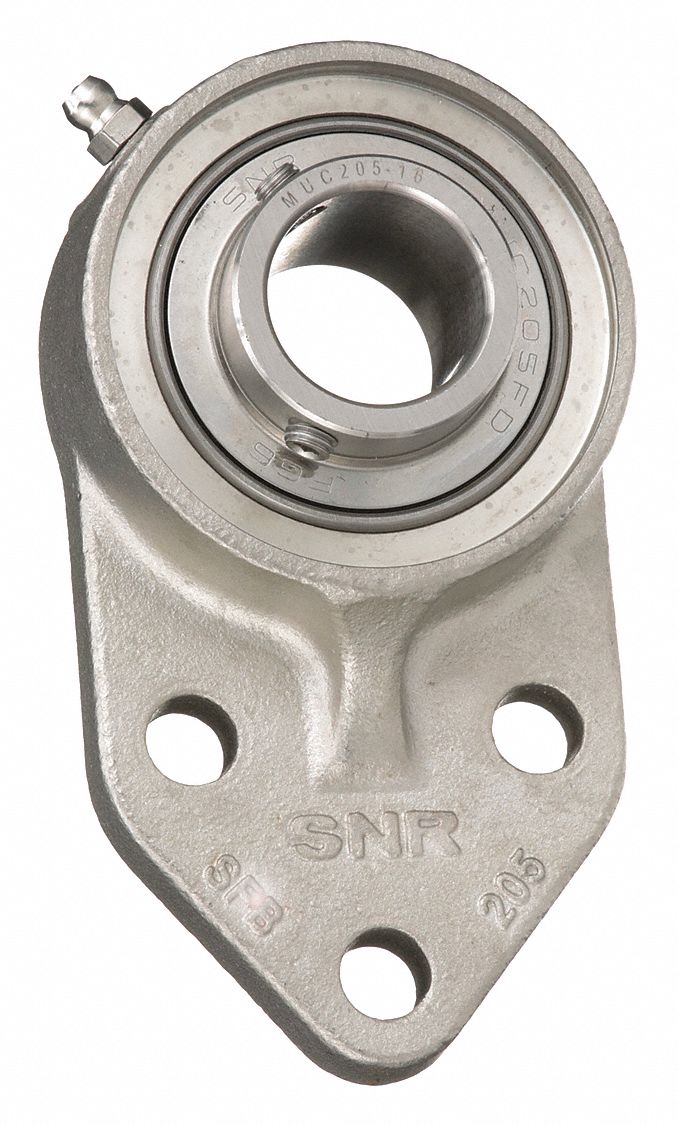

The NTN 3 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 30 mm cylindrical bore, 79.5 mm length, and 40.2 mm width. It features a 440C stainless steel construction, set screws, a closed cap, and M10 mounting bolts. The bearing is lubricated with FDA/USDA-H1 solid grease and uses metric measurements.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 79.5 mm |
| Wd | 40.2 mm |
| Bore | 30 mm |
| Type | SS, Set Screws, 440C |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | M10 |
| Included Bearing Cap | Closed Cap |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCFB206CCFG1 |
