Ntn 3G-OTH-109216 — Spesifikasi Teknis

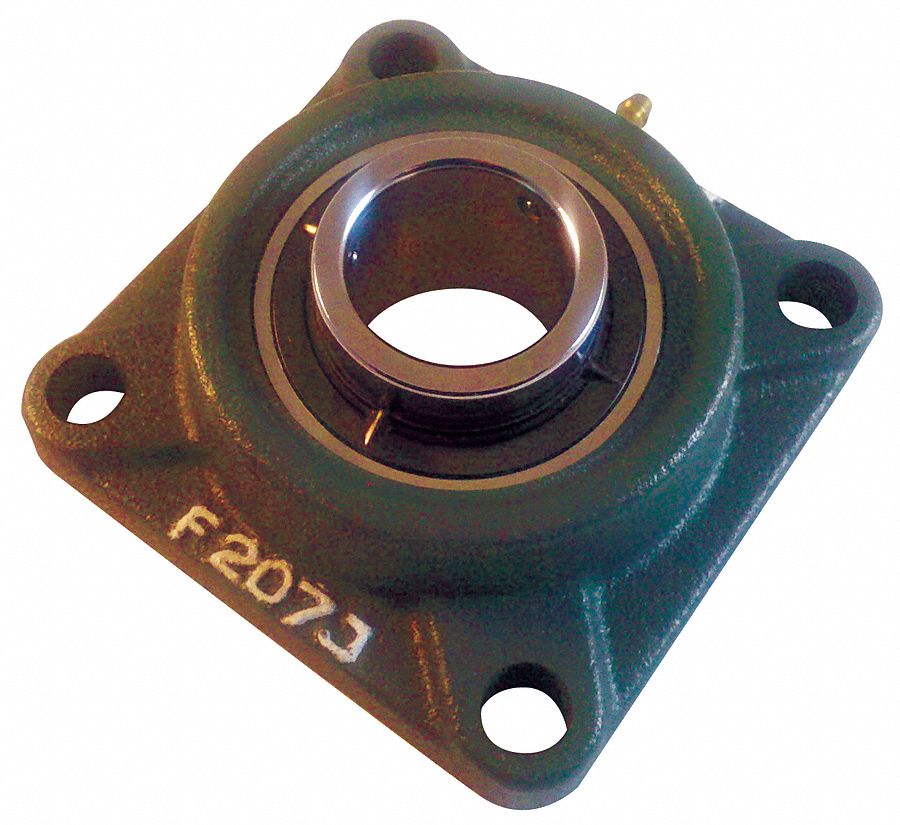

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 1 3/8 in cylindrical bore and a cast iron housing. It features set screws for shaft locking, a 4 19/32 in square flange length, and uses NLGI #3 equivalent lubricant. The mounting bolt size is 1/2 in, and the system of measurement is inch.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 4 19/32 in |
| Bore | 1 3/8 in |
| Type | Cast Iron, Set Screws, Square |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 1/2 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCF207-106D1 |
