Ntn 3G-OTH-107726 — Spesifikasi Teknis

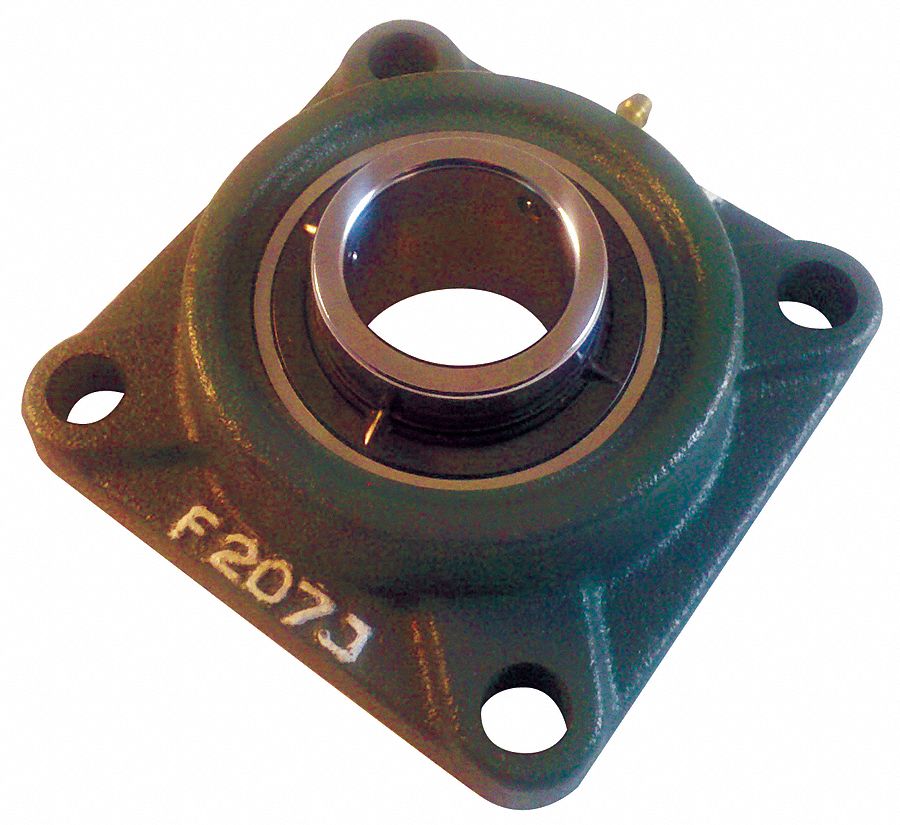

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 1 7/16 in cylindrical bore, cast iron housing, and set screw locking. It features a 4 19/32 in square flange length, uses NLGI #3 equivalent lubricant, and accepts a 1/2 in mounting bolt. This inch-system unit (MPN UCF207-107D1) is designed for radial load applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 4 19/32 in |
| Bore | 1 7/16 in |
| Type | Cast Iron, Set Screws, Square |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 1/2 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCF207-107D1 |
