Ntn 3G-OTH-120469 — Spesifikasi Teknis

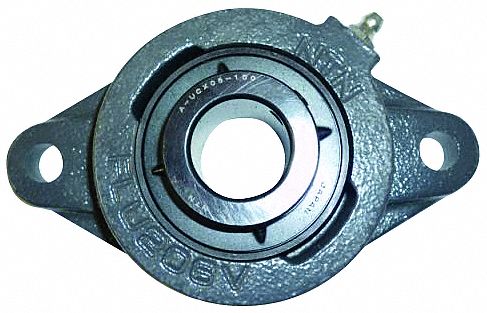

The NTN 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 1 3/4 in cylindrical bore, designed for inch-system applications. It features a cast iron housing with set screws and a rhombus shape, measuring 7 3/32 in length. The bearing is lubricated with NLGI #3 equivalent grease and uses a 1/2 in mounting bolt size (MPN UCFLU-1.3/4M).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 7 3/32 in |
| Bore | 1 3/4 in |
| Type | Cast Iron, Set Screws, Rhombus |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 1/2 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCFLU-1.3/4M |
