Ntn 3G-OTH-104077 — Spesifikasi Teknis

Name: Ntn 3G-OTH-104077 NTN Pillow Block Bearing: 1 3/4 in Bore, Cast Iron, Set Screws, 2 1/4 in Shaft Ht, 4.5 in Overall Ht (MPN UCPX-1.3/4M). Key specifications — Brand: NTN; Maximum Speed: 3,050 RPM; Mounting Bolt Size: 5/8 in; System of Measurement: Inch.
Brand: Ntn

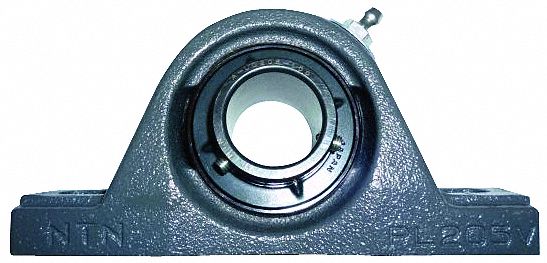

The NTN UCPX-1.3/4M is a medium duty pillow block ball bearing with a 1 3/4 in bore, designed for inch-system applications. This cast-iron unit features set screw locking and a 2 1/4 in shaft height, with a 4.5 in overall height. It supports a maximum speed of 3,050 RPM and requires a 5/8 in mounting bolt size.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Cast Iron, Set Screws
Brand	NTN
Shaft Ht	2 1/4 in
Overall Ht	4.5 in
Maximum Speed	3,050 RPM
Mounting Bolt Size	5/8 in
System Of Measurement	Inch
Manufacturer Part Number	UCPX-1.3/4M
