Ntn 3G-OTH-104108 — Spesifikasi Teknis

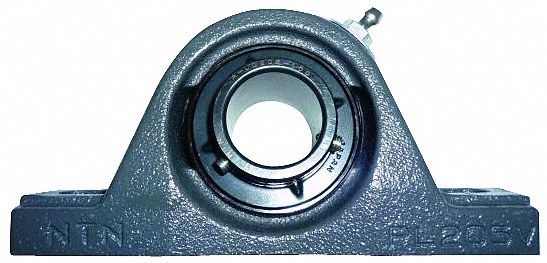

Name: Ntn 3G-OTH-104108 NTN Pillow Block Bearing: 2 3/16 in Bore, Cast Iron, Set Screws, 2 3/4 in Shaft Ht, 2,450 RPM (MPN UCPX-2.3/16M). Key specifications — Brand: NTN; Maximum Speed: 2,450 RPM; Mounting Bolt Size: 5/8 in; System of Measurement: Inch.
Brand: Ntn

The NTN UCPX-2.3/16M is a medium duty pillow block ball bearing with a 2 3/16 in bore, designed for inch-system applications. It features a cast iron housing, set screw locking, and a 2 3/4 in shaft height, with a maximum speed of 2,450 RPM and a 5/8 in mounting bolt size.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Cast Iron, Set Screws, 2,450 RPM
Brand	NTN
Shaft Ht	2 3/4 in
Maximum Speed	2,450 RPM
Mounting Bolt Size	5/8 in
System Of Measurement	Inch
Manufacturer Part Number	UCPX-2.3/16M
