Ntn 3G-OTH-120562 — Spesifikasi Teknis

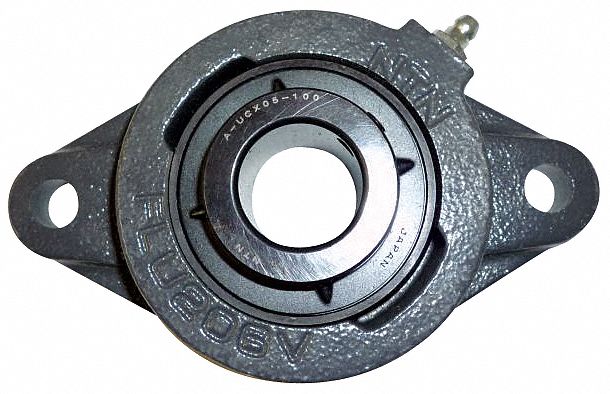

The NTN 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 1 1/4 in cylindrical bore, cast iron housing, and set screw locking. This inch-system unit uses NLGI #3 equivalent lubricant and requires a 7/16 in mounting bolt. The rhombus-shaped flange design (MPN ARFLU-1.1/4S) provides a compact, two-bolt mounting configuration for radial load applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 5 19/32 in |
| Bore | 1 1/4 in |
| Type | Cast Iron, Set Screws, Rhombus |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 7/16 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | ARFLU-1.1/4S |
