Omron 3G-OTH-36868 — Spesifikasi Teknis

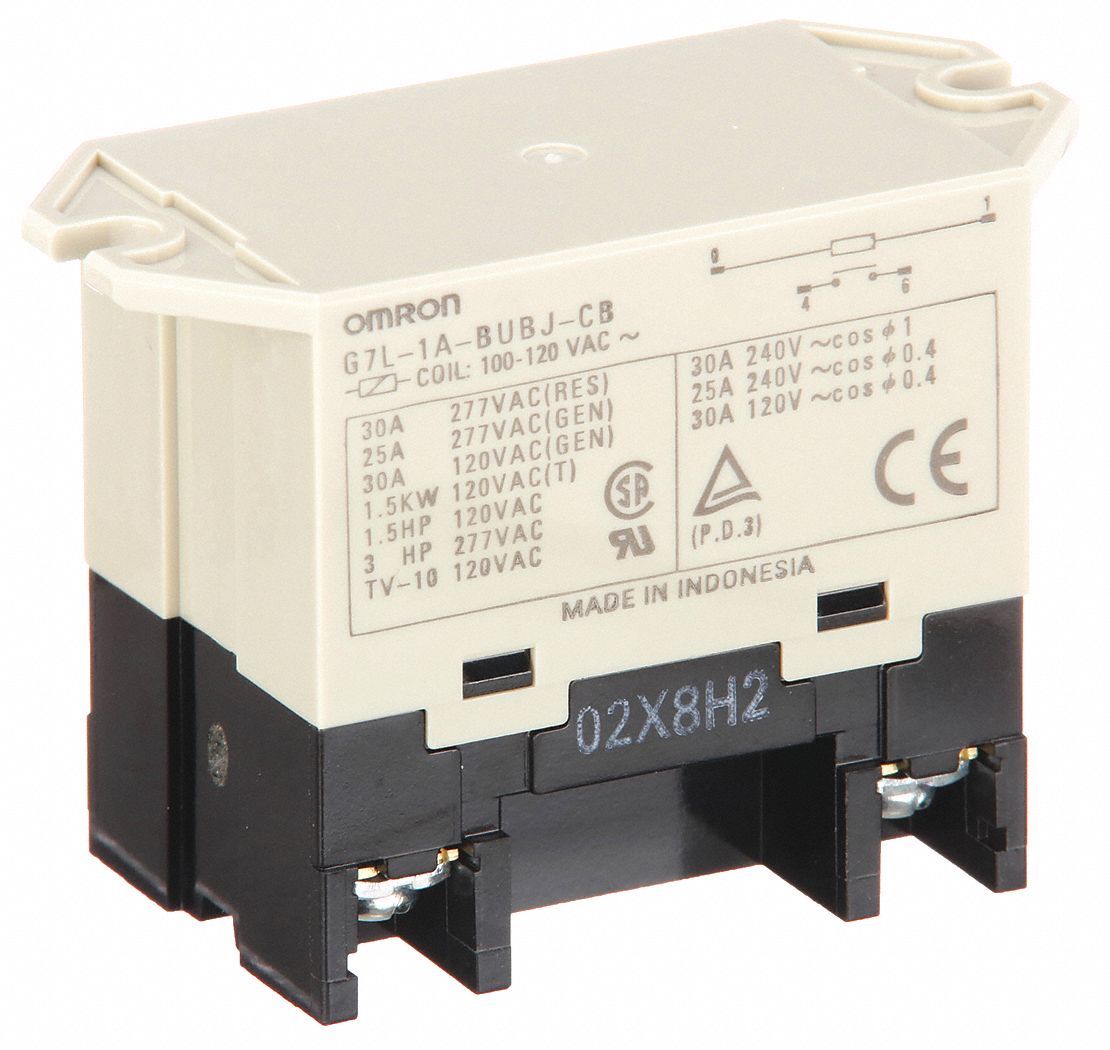

The OMRON G7L Series Enclosed Power Relay is a surface (top flange) mounted relay with a square base and screw terminal electrical connection. It features a 30 A current rating at 100/120V AC, SPST-NO contact configuration, and an operating current of 25 A at 220V AC (Inductive Load). The relay is identified by manufacturer part number G7L-1A-BUBJ-CB-AC100/120.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 100/120V |
| Type | SPST-NO |
| Brand | OMRON |
| Series | G7L Series |
| Base Type | Square |
| Current Rating | 30 A |
| Mounting Style | Top Flange |
| Operating Current | 25 A at 220V AC (Inductive Load) |
| Electrical Connection | Screw Terminal |
| Manufacturer Part Number | G7L-1A-BUBJ-CB-AC100/120 |
