Omron 3G-OTH-33469 — Spesifikasi Teknis

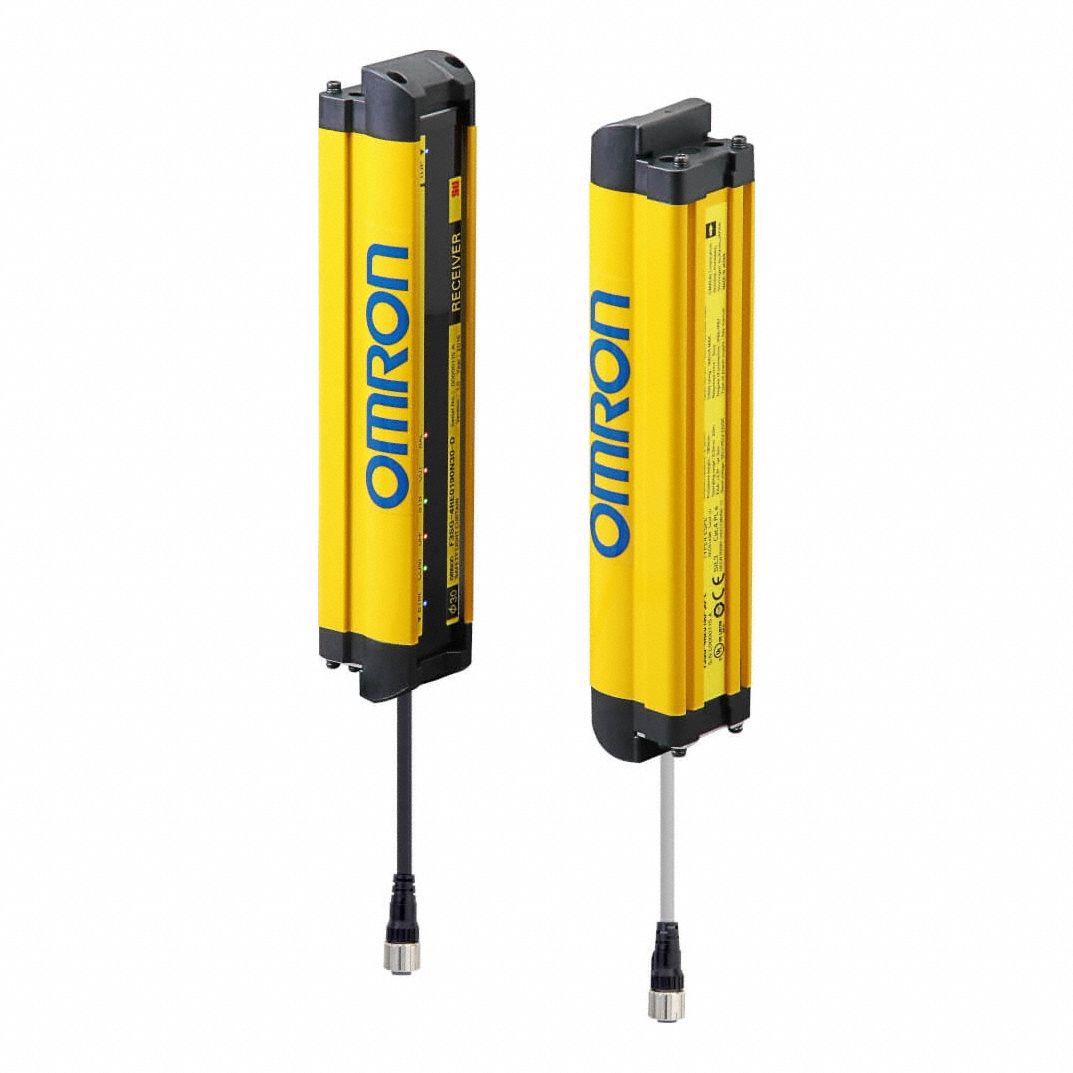

The OMRON F3SG4RE1230P30 is a safety light curtain for finger detection, operating on 24V DC with a 300 mA safety output rating. It features 60 beams at 10 mm spacing, a 1,230 mm protected height, and uses 870 nm IR LED light. Both the receiver and transmitter connect via M12 electrical connections.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | M12 |
| Beams | 60 |
| Brand | OMRON |
| Spacing | 10 mm |
| Protected Ht | 1,230 mm |
| Type Of Light | 870 nm IR LED |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 24V DC |
| Safety Output Ratings | 300 mA @ 24V DC |
| Manufacturer Part Number | F3SG4RE1230P30 |
| Receiver Electrical Connection | M12 |
| Transmitter Electrical Connection | M12 |
