Plast-o-matic 3G-OTH-91060 — Spesifikasi Teknis

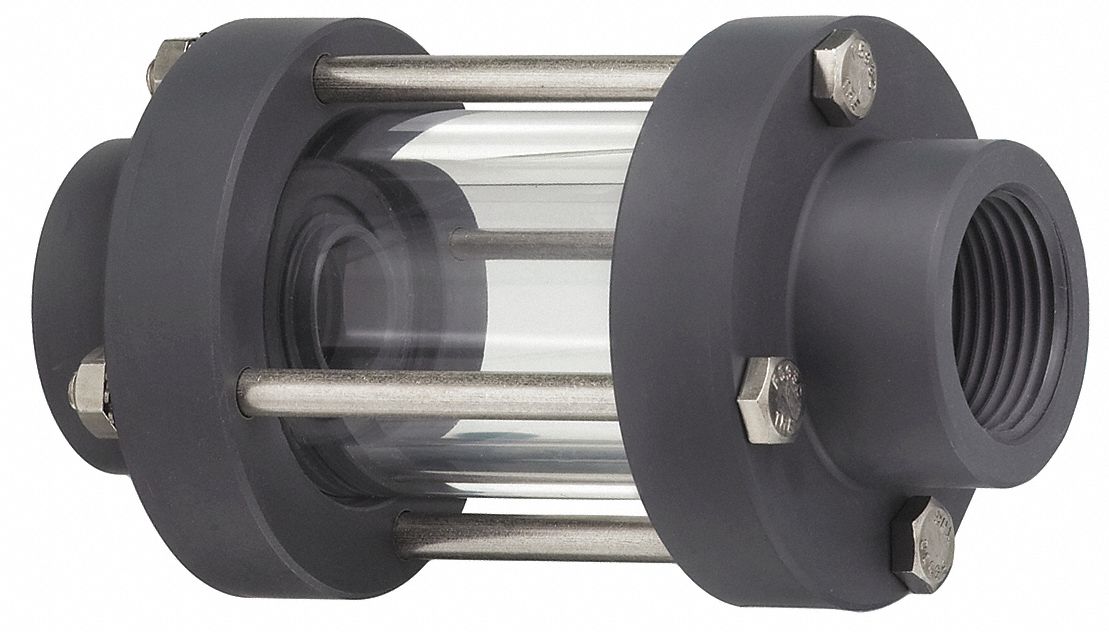

The PLAST-O-MATIC Single Wall Sight Flow Indicator: Polypropylene is a full-view flow indicator designed for visual monitoring of fluid flow. This model features a 1/2 in FNPT connection, a maximum operating pressure of 155 psi, and an acrylic window. It is equipped with a Viton seal, can be mounted horizontally, and allows flow in any direction.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| FNPT | 1/2 in |
| Type | Grade 1, Single Walls |
| Brand | PLAST-O-MATIC |
| Seal Material | Viton |
| Flow Direction | Any Direction |
| Window Material | Acrylic |
| Mounting Orientation | Horizontal |
| Max. Operating Pressure | 155 psi |
| Manufacturer Part Number | GX050V-PP |
