Plast-o-matic 3G-OTH-91396 — Spesifikasi Teknis

Name: Plast-o-matic 3G-OTH-91396 PLAST-O-MATIC Double Wall Sight Flow Indicator: Polypropylene, Double Walls, 3 in FNPT, Pipe Threads (MPN GY300V-PP). Key specifications — Brand: PLAST-O-MATIC; Max. Operating Pressure: 115 psi; Seal Material: Viton; Flow Direction: Any Direction; Window Material: Acrylic; Mounting Orientation: Horizontal.
Brand: Plast-o-matic

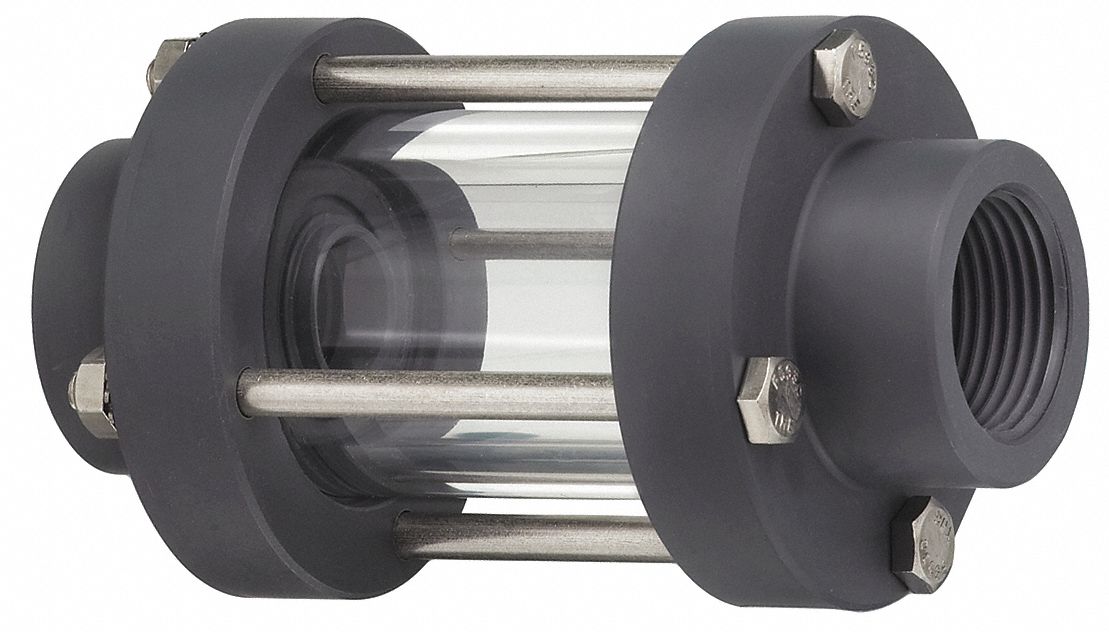

The PLAST-O-MATIC Double Wall Sight Flow Indicator is a full-view flow indicator constructed with polypropylene double walls and a 3-inch FNPT pipe thread connection. It features an acrylic window, Viton seal material, and a maximum operating pressure of 115 psi. Designed for horizontal mounting, this indicator allows flow observation in any direction.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
FNPT	3 in
Type	Double Walls, Pipe Threads
Brand	PLAST-O-MATIC
Seal Material	Viton
Flow Direction	Any Direction
Window Material	Acrylic
Mounting Orientation	Horizontal
Max. Operating Pressure	115 psi
Manufacturer Part Number	GY300V-PP
