Raytek 3G-OTH-180868 — Spesifikasi Teknis

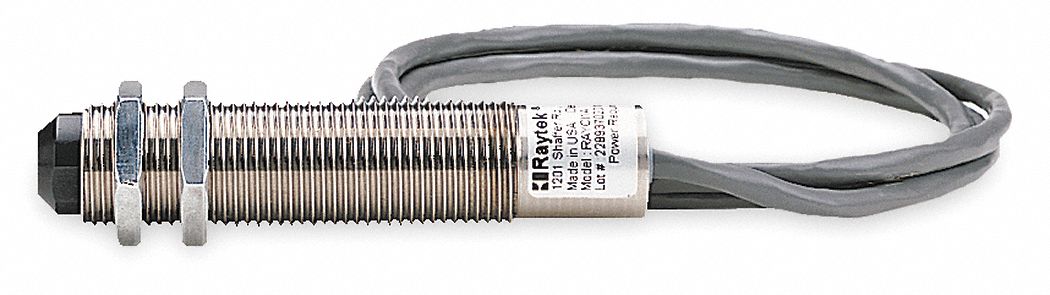

The RAYTEK Fixed Mount Infrared Temperature Sensor (SKU 1CVJ1) is an infrared temperature bracket and sensor with a fixed emissivity setting of 0.95. It features a 4:1 distance-to-spot ratio, IP65 and NEMA 4 enclosure ratings, and operates on 12V DC or 24V DC input voltage. The sensor includes (2) mounting nuts, has a 3/4"-16 UNF 2A thread size, and offers repeatability of +/-1% of measured value or +/-1°C (whichever is greater). It is ISO 9001 certified.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | RAYCI1A10L, Fixed |
| Brand | RAYTEK |
| Cable Lg | 3.28 ft |
| Includes | (2) Mounting Nuts |
| IP Rating | IP65 |
| Standards | ISO 9001 |
| Thread Size | 3/4"-16 |
| Thread Type | UNF 2A |
| Input Voltage | 12V DC |
| Repeatability | +/-1% of Measured Value or +/-1°C (Whichever is Greater) |
| NEMA Enclosure Rating | 4 |
| Distance To Spot Ratio | 4:1 |
| Emissivity Adjustability | Fixed |
| Manufacturer Part Number | RAYCI1A10L |
| Maximum Emissivity Setting | 0.95 |
| Minimum Emissivity Setting | 0.95 |
