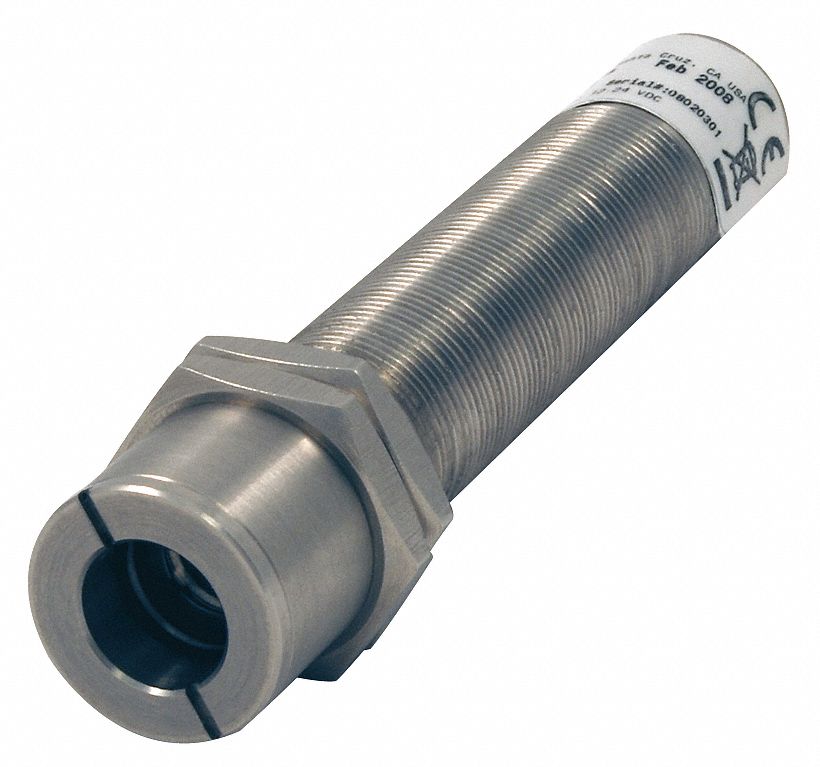

Raytek 3G-OTH-180865 — Spesifikasi Teknis
The RAYTEK Fixed Mount Infrared Temperature Sensor (SKU 5UXR6) is an infrared temperature sensor with an adjustable emissivity range of 0.10 to 1.10. It features a 13:1 distance-to-spot ratio, IP65 and NEMA 4 enclosure ratings, and operates on 24V DC input with a maximum output voltage of 5V DC. The sensor includes a 3/4"-16 UNF thread, a 10 ft cable, and meets CE and ISO 9001 standards.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | RAYTEK |
| Includes | Infrared Sensor |
| IP Rating | IP65 |
| Standards | CE |
| Thread Size | 3/4"-16 |
| Thread Type | UNF |
| Input Voltage | 24V DC |
| Repeatability | +/-0.5% of Reading +/-1ºC or +/-2ºC (Whichever is Greater) |
| NEMA Enclosure Rating | 4 |
| Distance To Spot Ratio | 13:1 |
| Maximum Output Voltage | 5V DC |
| Emissivity Adjustability | Adjustable |
| Manufacturer Part Number | RAYCMLTV3 |
| Maximum Emissivity Setting | 1.10 |
| Minimum Emissivity Setting | 0.10 |
