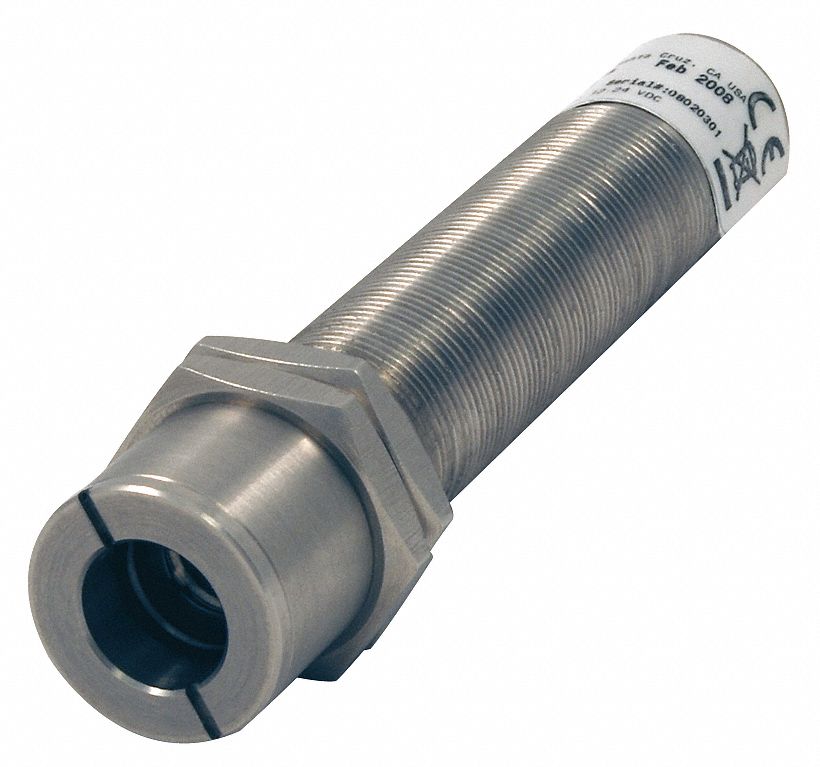

Raytek 3G-OTH-180861 — Spesifikasi Teknis
The RAYTEK Fixed Mount Infrared Temperature Sensor (SKU 5UXR9) is an infrared temperature bracket and sensor with a 13:1 distance-to-spot ratio and adjustable emissivity from 0.10 to 1.10. It operates on 24V DC input voltage, features a 3/4"-16 UNF thread size, and is rated IP65 with NEMA 4 enclosure. The sensor includes (2) mounting nuts and complies with EC Directive 2004 standards, offering repeatability of +/-0.5% of reading +/-1ºC or +/-2ºC (whichever is greater).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | - Directive 108/EC - Directive 2004, RAYCMLTK |
| Brand | RAYTEK |
| Includes | (2) Mounting Nuts |
| IP Rating | IP65 |
| Standards | EC - Directive 2004 |
| Thread Size | 3/4"-16 |
| Thread Type | UNF |
| Input Voltage | 24V DC |
| Repeatability | +/-0.5% of Reading +/-1ºC or +/-2ºC (Whichever is Greater) |
| NEMA Enclosure Rating | 4 |
| Distance To Spot Ratio | 13:1 |
| Emissivity Adjustability | Adjustable |
| Manufacturer Part Number | RAYCMLTK |
| Maximum Emissivity Setting | 1.10 |
| Minimum Emissivity Setting | 0.10 |
