Schaefer 3G-OTH-80722 — Spesifikasi Teknis

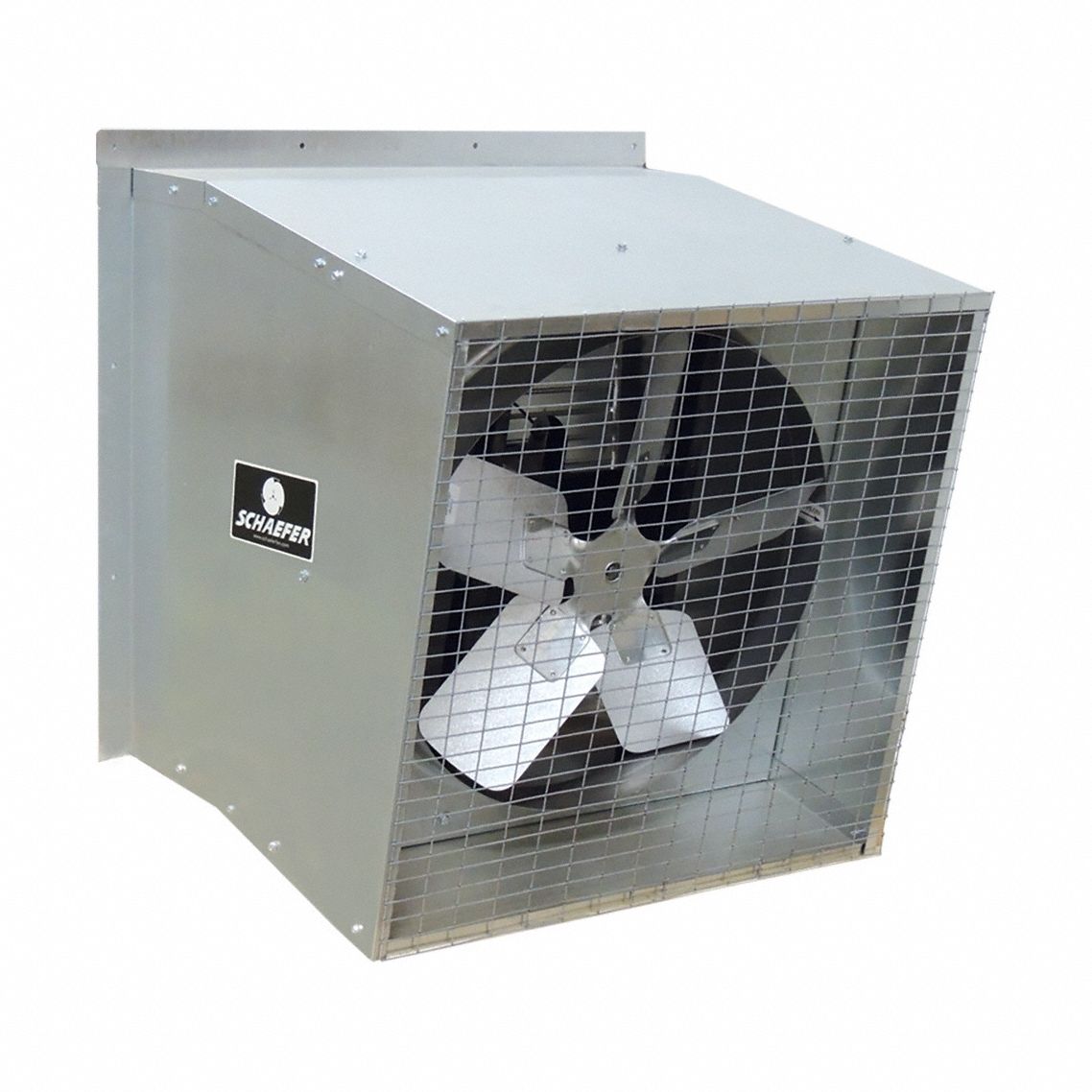

The SCHAEFER 404PV1 is a belt-drive slant-wall exhaust fan with a 48-inch galvanized steel blade and a 1 1/2 hp totally enclosed motor. It operates at 24,000 cfm on a 208 to 230V AC, single-phase power supply. The unit features a galvanized steel frame with a galvanized finish.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 208 to 230V |
| Type | 1 1/2 hp, Totally Enclosed, 24,000 cfm, 1 ph |
| Blade | 48 in |
| Brand | SCHAEFER |
| Frame Finish | Galvanized |
| Blade Material | Galvanized Steel |
| Frame Material | Steel |
| Motor Enclosure | Totally Enclosed |
| Nameplate Voltage | 208 to 230V AC |
| Manufacturer Part Number | 485S112 |
