Schneider 3G-OTH-36663 — Spesifikasi Teknis

Name: Schneider 3G-OTH-36663 SCHNEIDER Solid State Relay: DIN-Rail Mounted, 12 A Max Output Current, SCR, AC Output (MPN SSM1A112BDR). Key specifications — Brand: SCHNEIDER; Current Type: DC; Electrical Connection: Screw Clamp; Finger Safe: Yes; Input Current: 9 to 11 mA; Maximum Output Current without Heat Sink: 12 A; Mounting Style: DIN Rail; Output Voltage: 24 to 280V AC.
Brand: Schneider

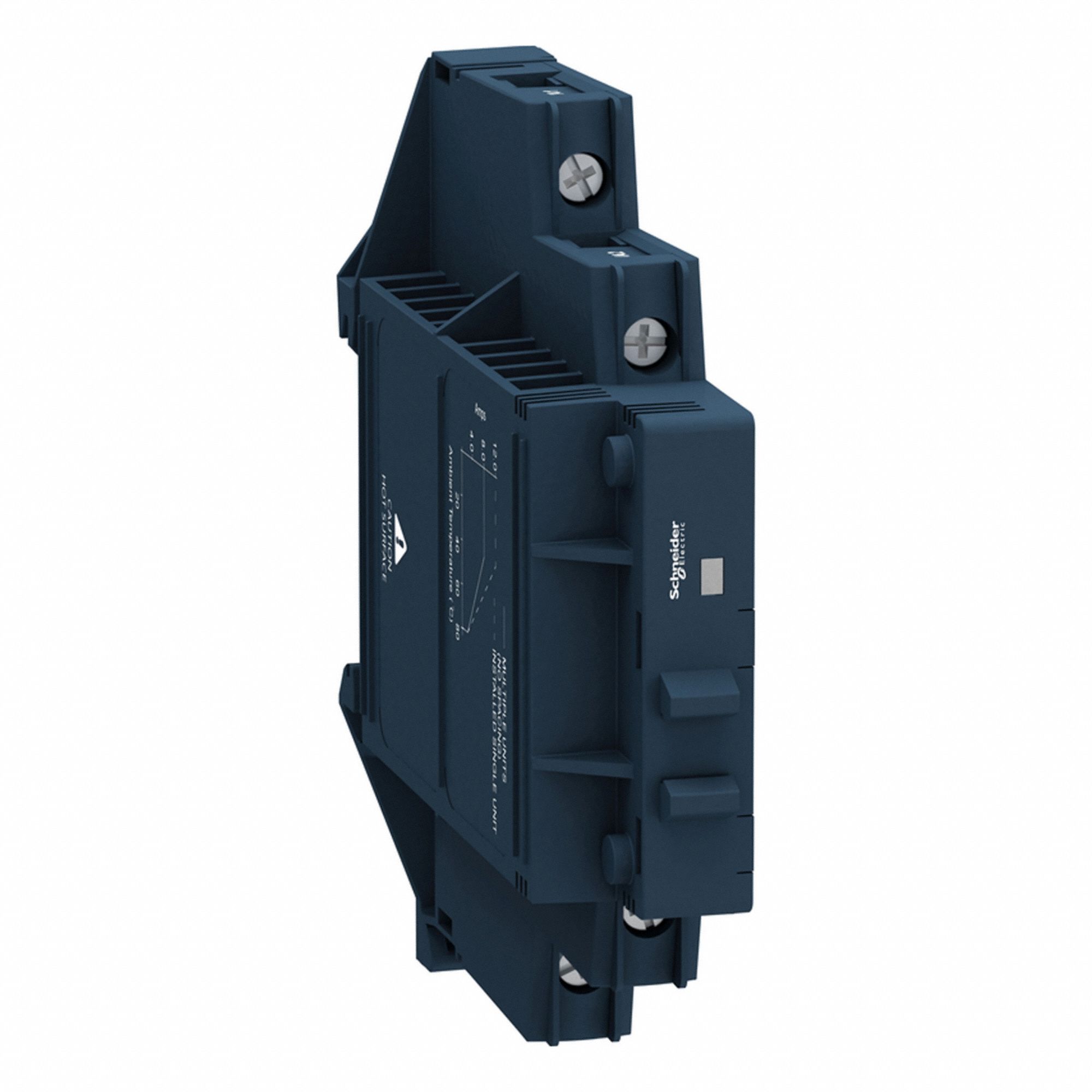

The SCHNEIDER Solid State Relay is a DIN-Rail Mounted Relay with a Form A (SPST-NO) switch configuration and SCR output. It features a DC input current of 9 to 11 mA and an AC output voltage of 24 to 280V AC, with a maximum output current of 12 A without a heat sink. This finger-safe relay uses a screw clamp electrical connection and is designed for DIN-rail mounting.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	SCR, AC Output
Brand	SCHNEIDER
Finger Safe	Yes
Current Type	DC
Input Current	9 to 11 mA
Mounting Style	DIN Rail
Output Voltage	24 to 280V AC
Max Output Current	12 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	SSM1A112BDR
Maximum Output Current Without Heat Sink	12 A
